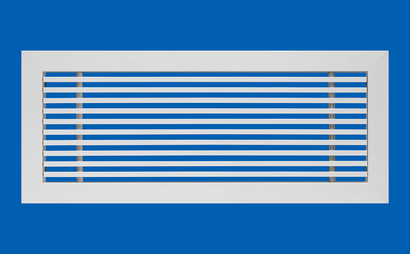

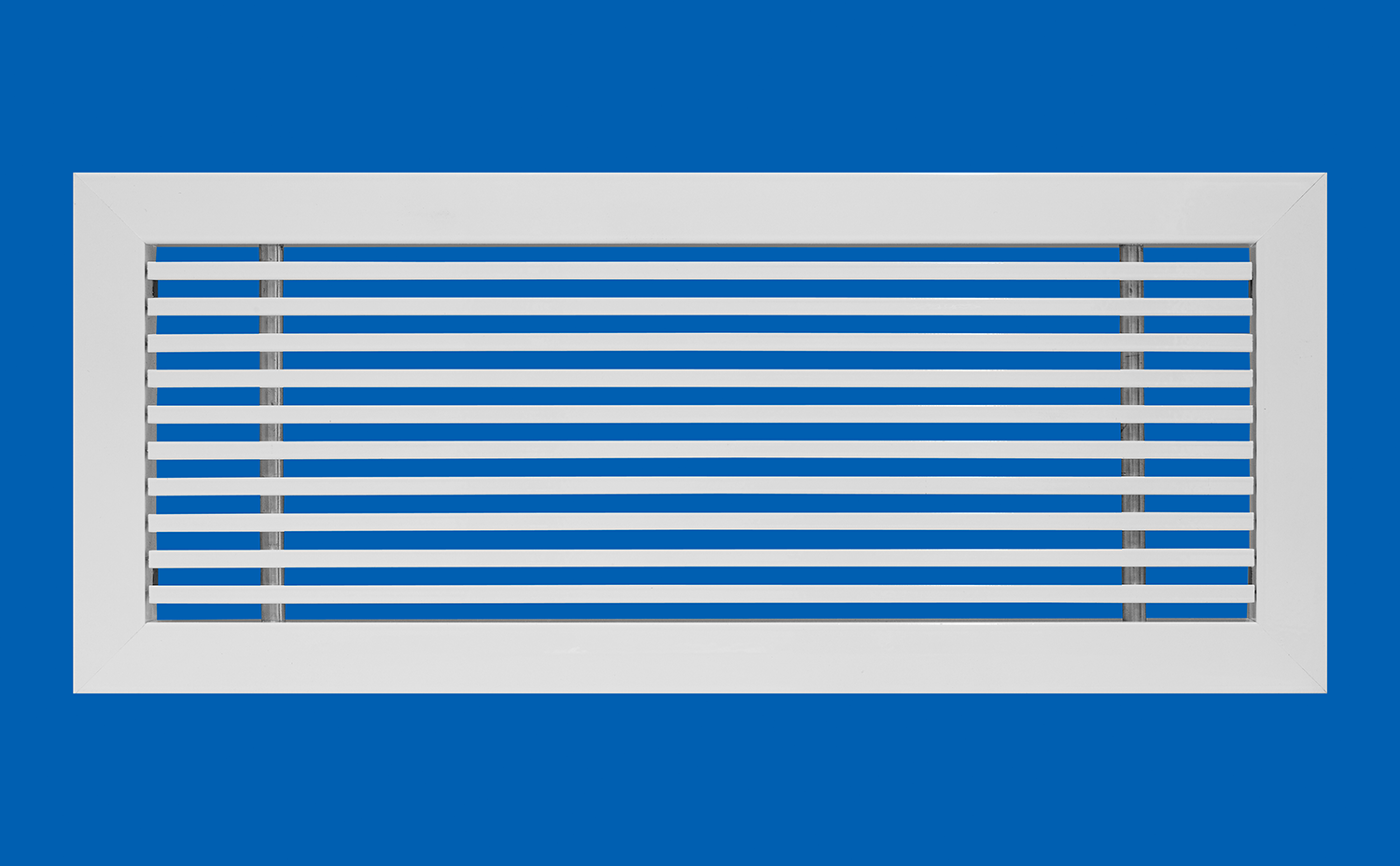

E-LO/B. Linear supply grille with fixed 20º horizontal blades, made with extruded anodized aluminium profiles.

E-LO/BR. Linear supply grille with fixed 20º horizontal blades, with flow regulation, made with extruded anodized aluminium profiles.

Fixtures:

- Springs with frame E-MM, E-MAM or E-CLIPO
- Bolts with frame E-MM, E-MAM, or E-TACO
- Screws with frame E-MM.

Finish: Anodized aluminium or white lacquered. Ask about other finishes.

Applications: These grilles have been designed for those cases which require great lengths of grille, both Outlet and return, it being possible to connect several of them to achieve any length. Due to their appearance, this type of grille is also used in more reduced dimensions, both in outlet and inlet.

Accessories: With the option to install with different accessories for perfect mounting:

E-LO/B+MMF Linear outlet grille with fixed 20º horizontal blades and filter holder E-MMF, made with extruded anodized aluminium profiles.
E-LO/B+FIL Linear outlet grille with fixed 20º horizontal blades and filter holder E-FIL, made with extruded anodized aluminium profiles.
