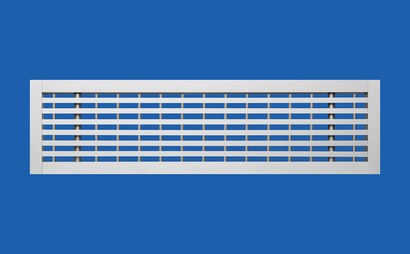

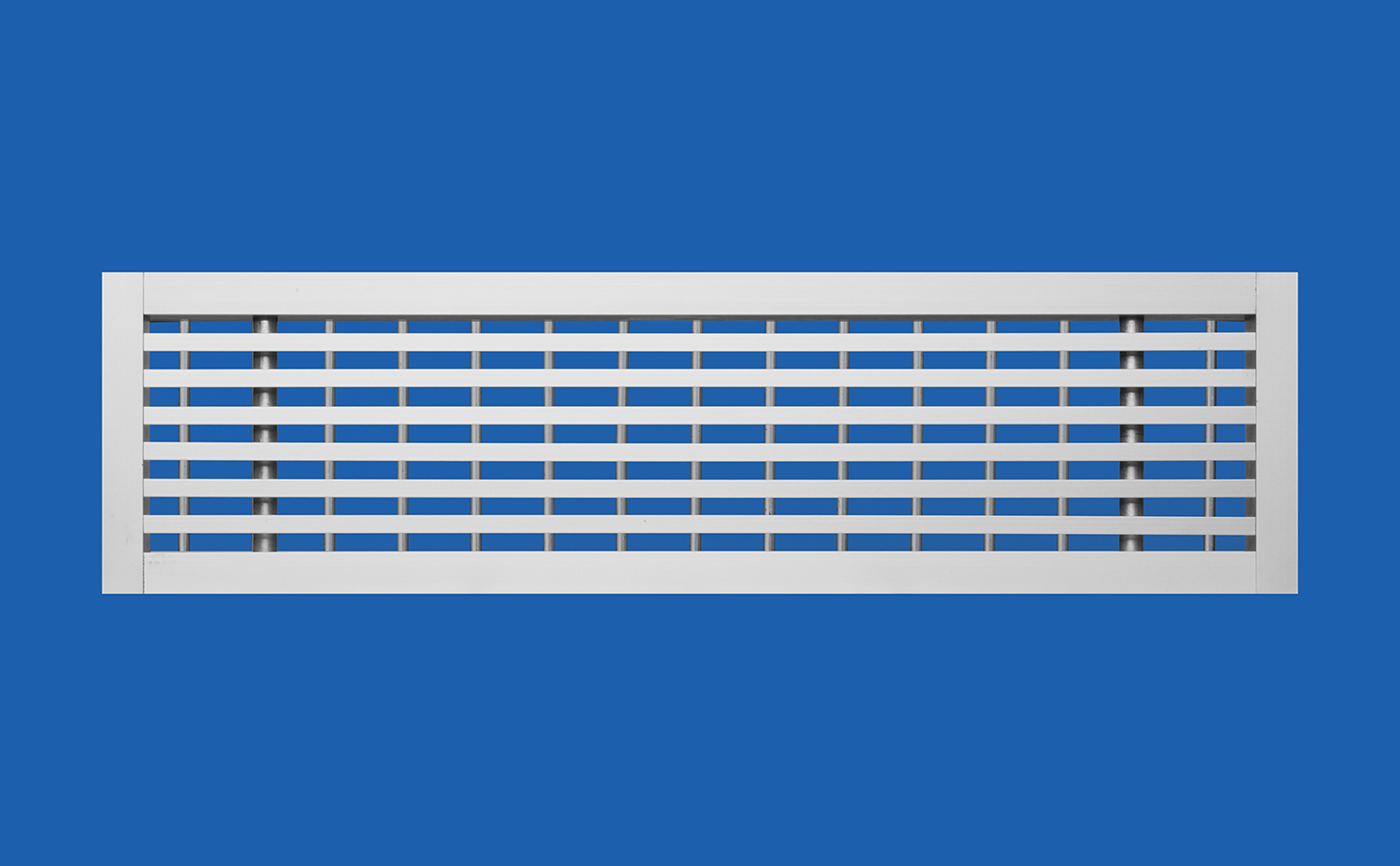

E-LO/ATPED: Linear supply grille with fixed horizontal blades at 0º with an 8 mm flat frame and deflector blades. Made with extruded and anodized aluminum profiles.

E-LO/BTPED: Linear supply grille with fixed horizontal blades at 20º with an 8 mm flat frame and deflection. Made with extruded and anodized aluminum profiles.

E-LO/ATPDER: Linear supply grille with fixed horizontal blades at 0º with an 8 mm flat frame, with deflection and flow regulation. Made with extruded and anodized aluminum profiles.

E-LO/BTPEDR: Linear supply grille with fixed horizontal blades at 20º with an 8 mm flat frame and deflection. With flow regulation and made with extruded and anodized aluminum profiles. Being a narrow-profile grille, the deflection is special for this type of grille and different from the E-D.

Fixtures: Latch with E-TACO.

Finish: Anodized aluminium or white lacquered aluminium. Ask about other finishes.

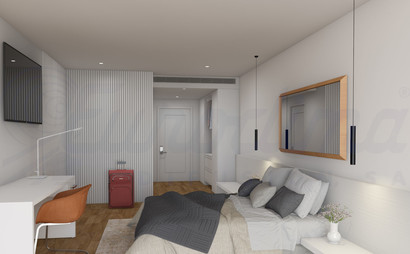

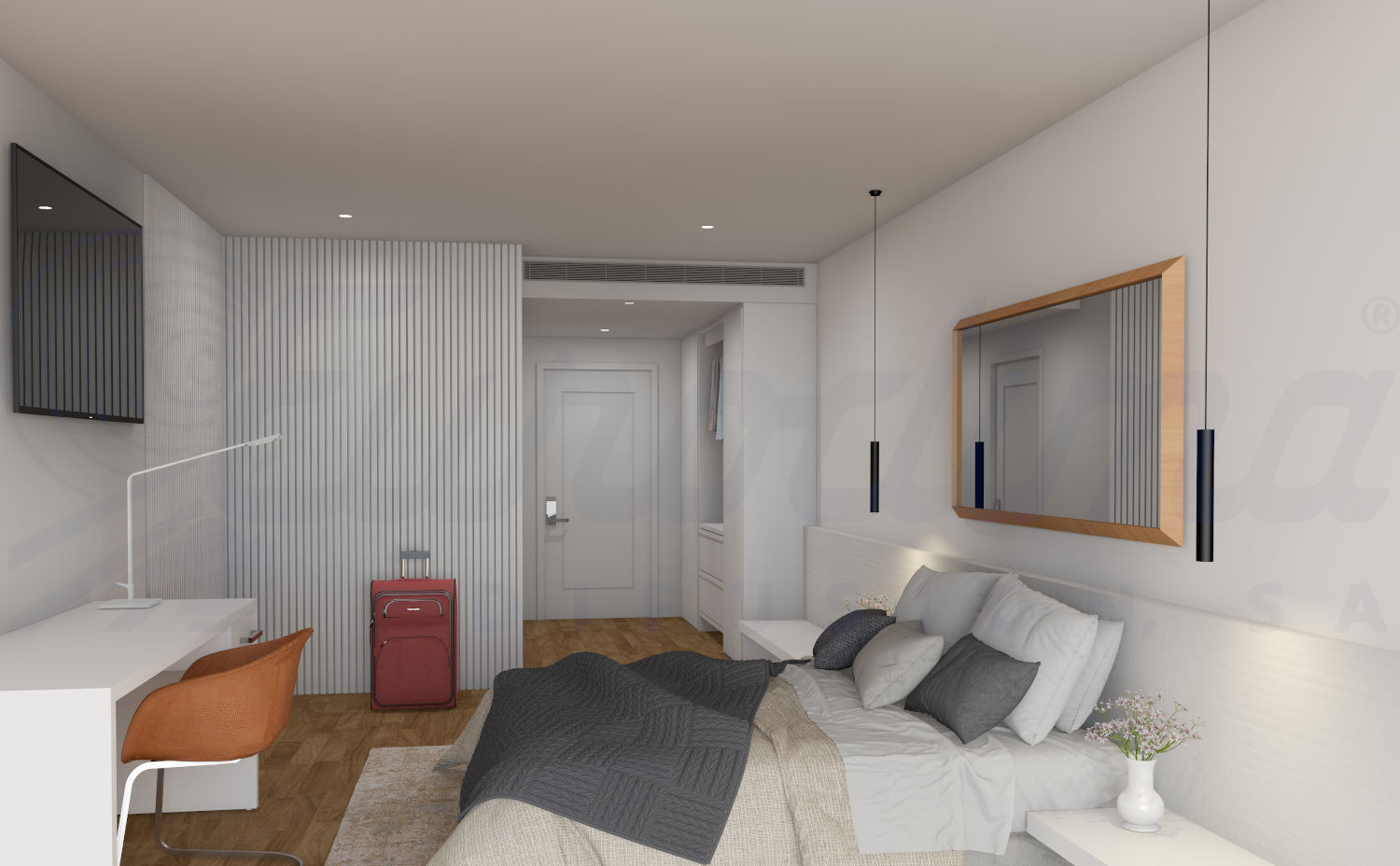

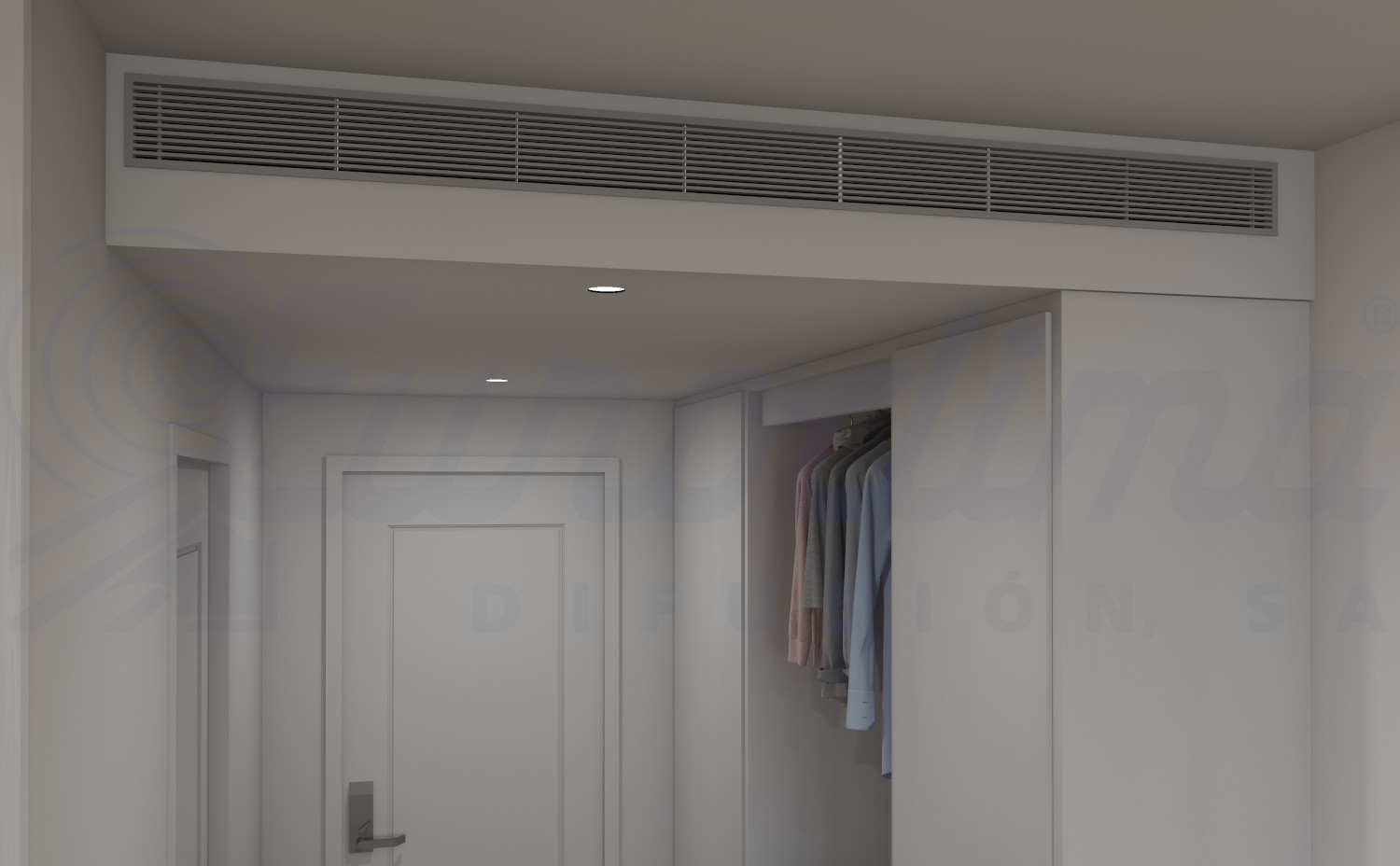

Applications: These grilles have been designed for those cases which require great lengths of grille, both Outlet and return, it being possible to connect several of them to achieve any length. They can also be used on the ceiling to create a curtain of air effect. Due to their appearance, this type of grille is also used in more reduced dimensions, both in Outlet and return.
