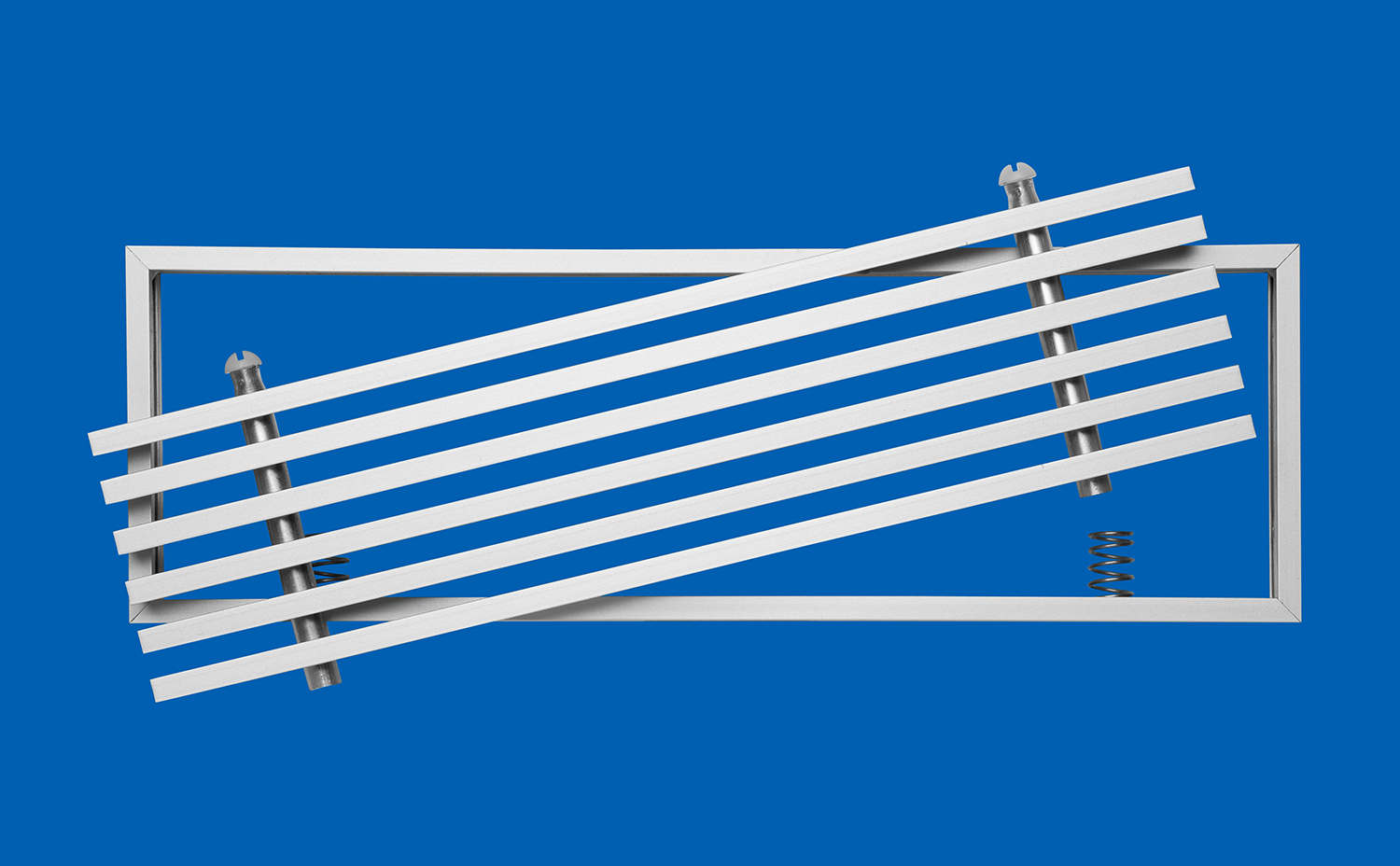

E-LO/ADES Linear grille with special 6 mm aluminium frame. To be fitted into the wall. The LS/A type grille with 0º fixed blades is removable.

Fixtures: To be fitted into a brick wall, the frame of the E-LO/ADES grille has teeth which hold onto the wall with mortar or plaster. In the case of it being fitted into wooden walls, the frame can be screwed in place.

Finish: Anodized aluminium or white lacquered aluminium. Ask about other finishes.

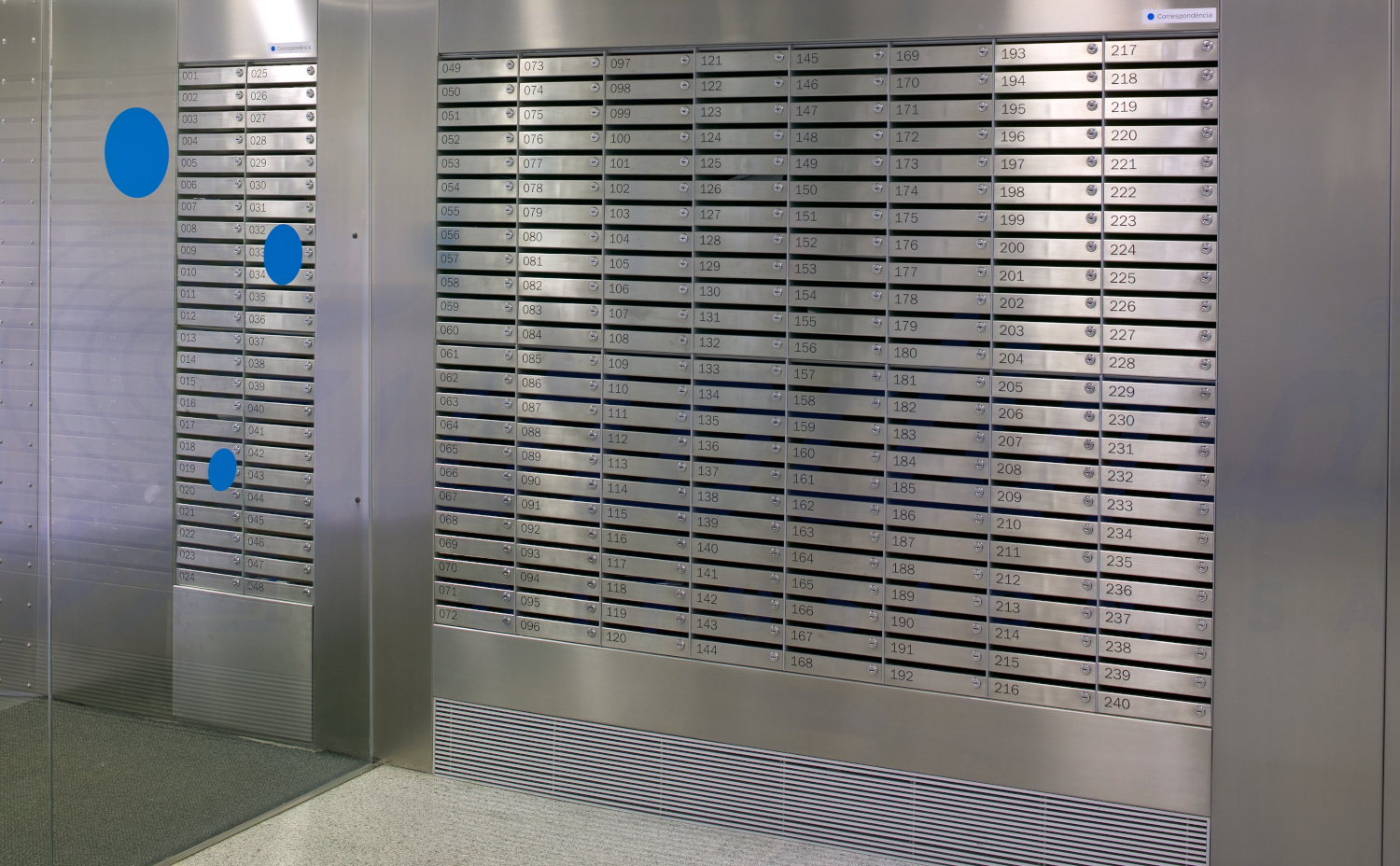

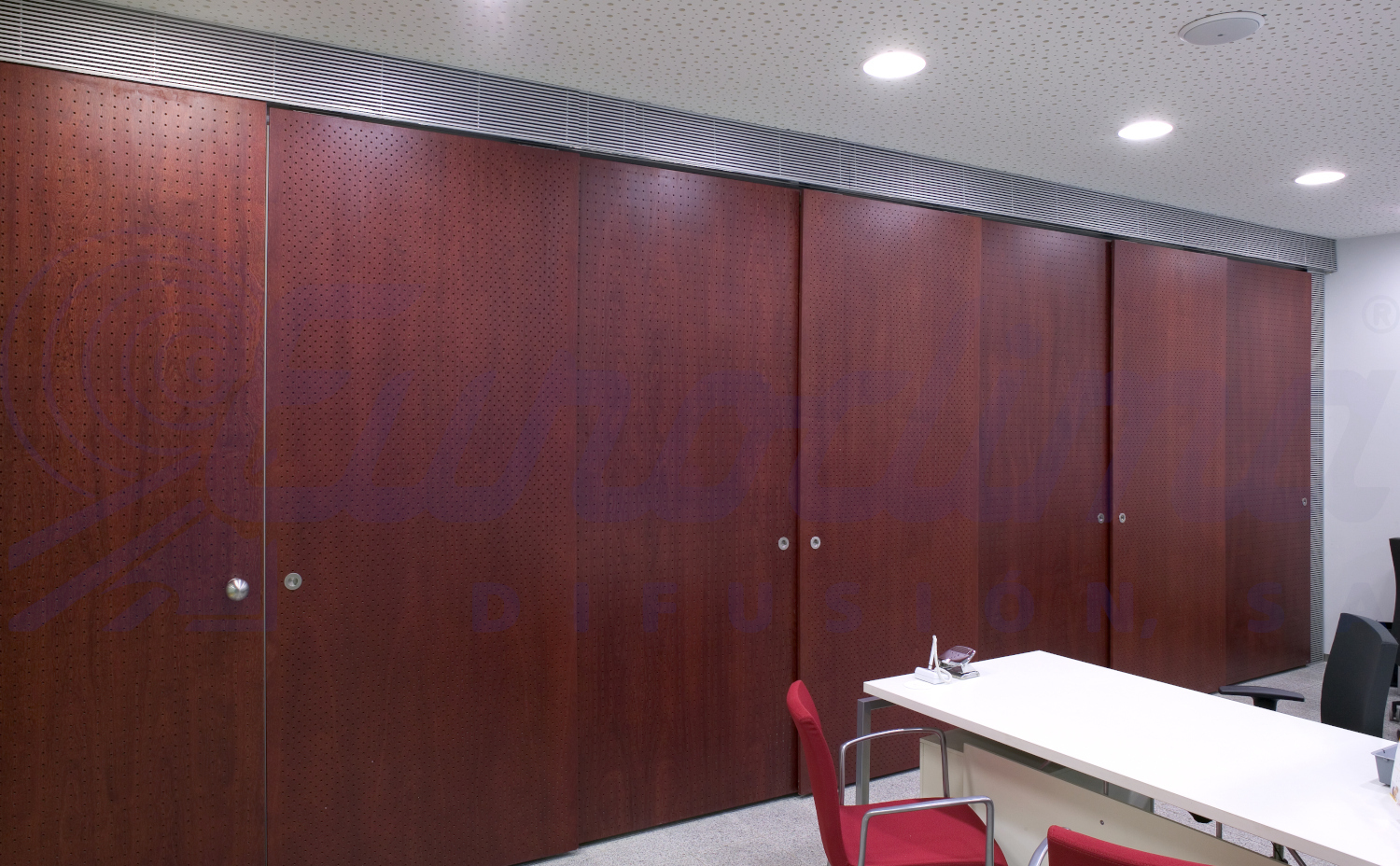

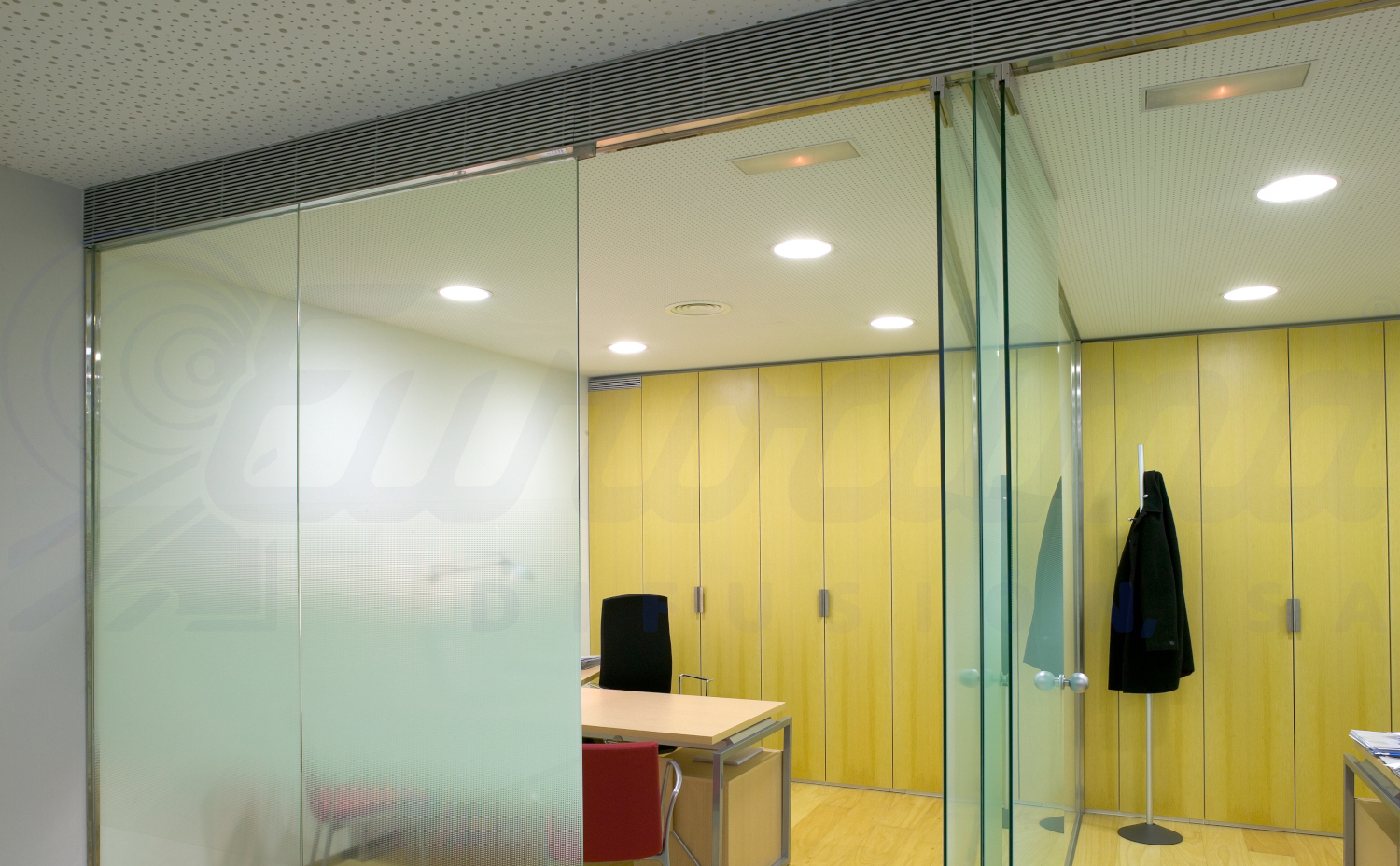

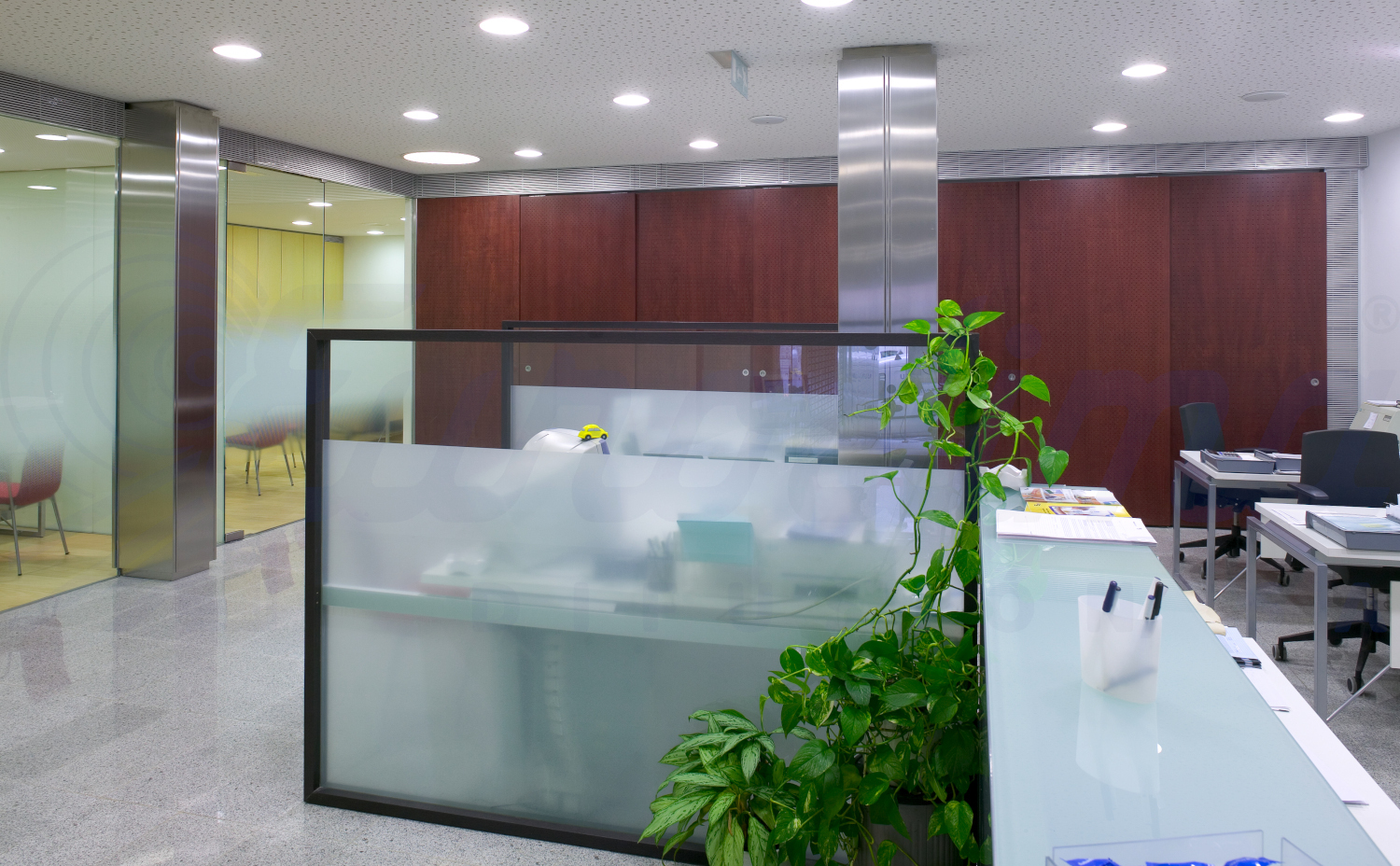

Applications: These grilles have been designed with their appearance in mind, reducing the size of the frame so that it matches the rest of the blades. For this reason it is necessary for the dimensions and the finish of the space where they are to be fitted to be good, bearing in mind that there is no frame to hide any possible imperfections. They are normally used, both in outlet and return grilles, built in to wooden surfaces like cupboards.
