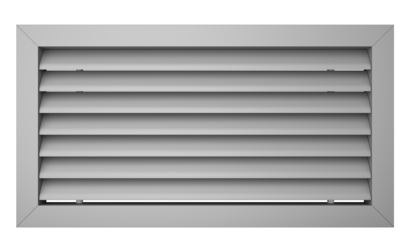

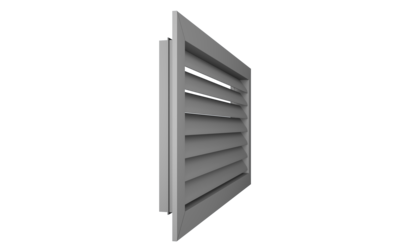

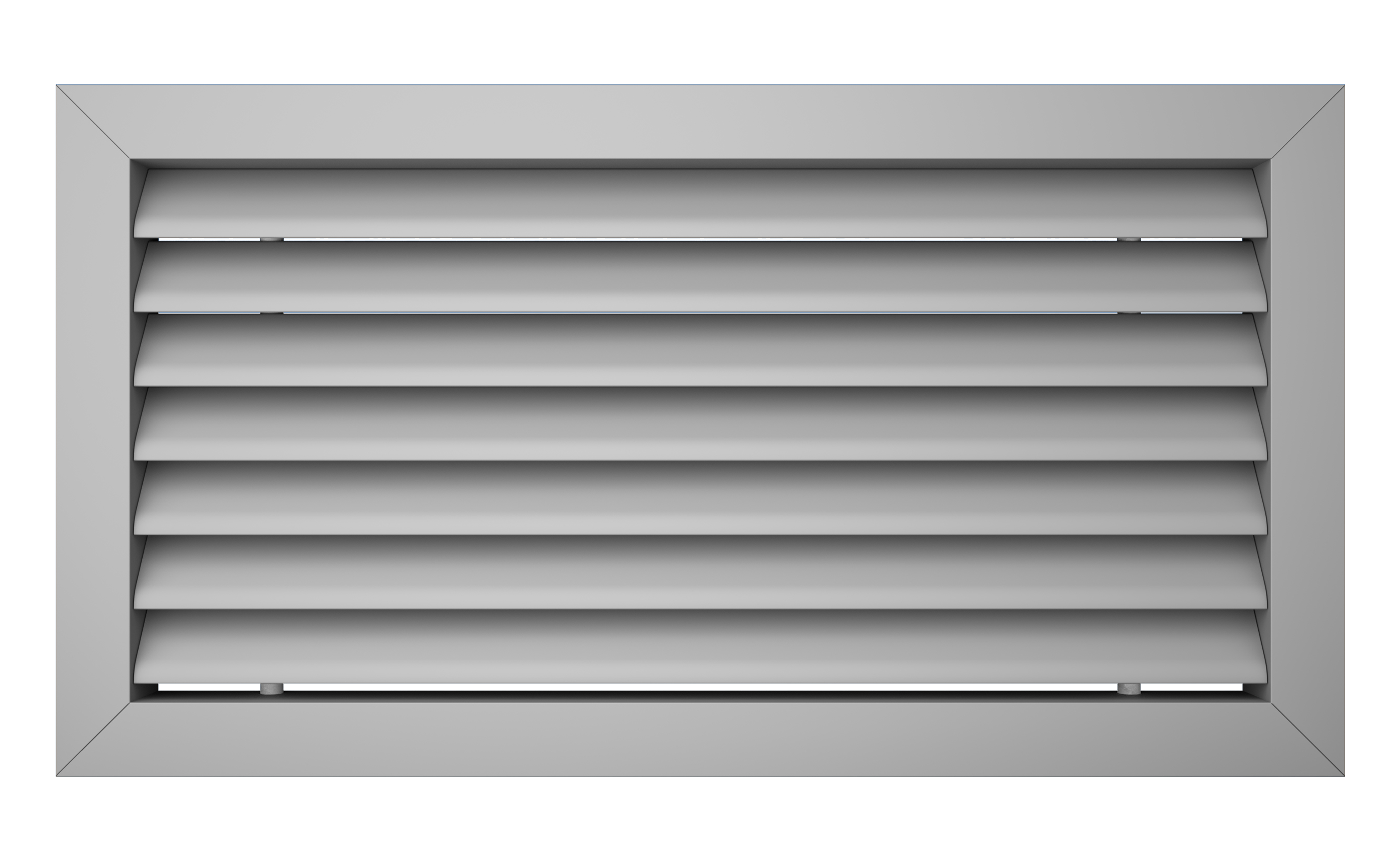

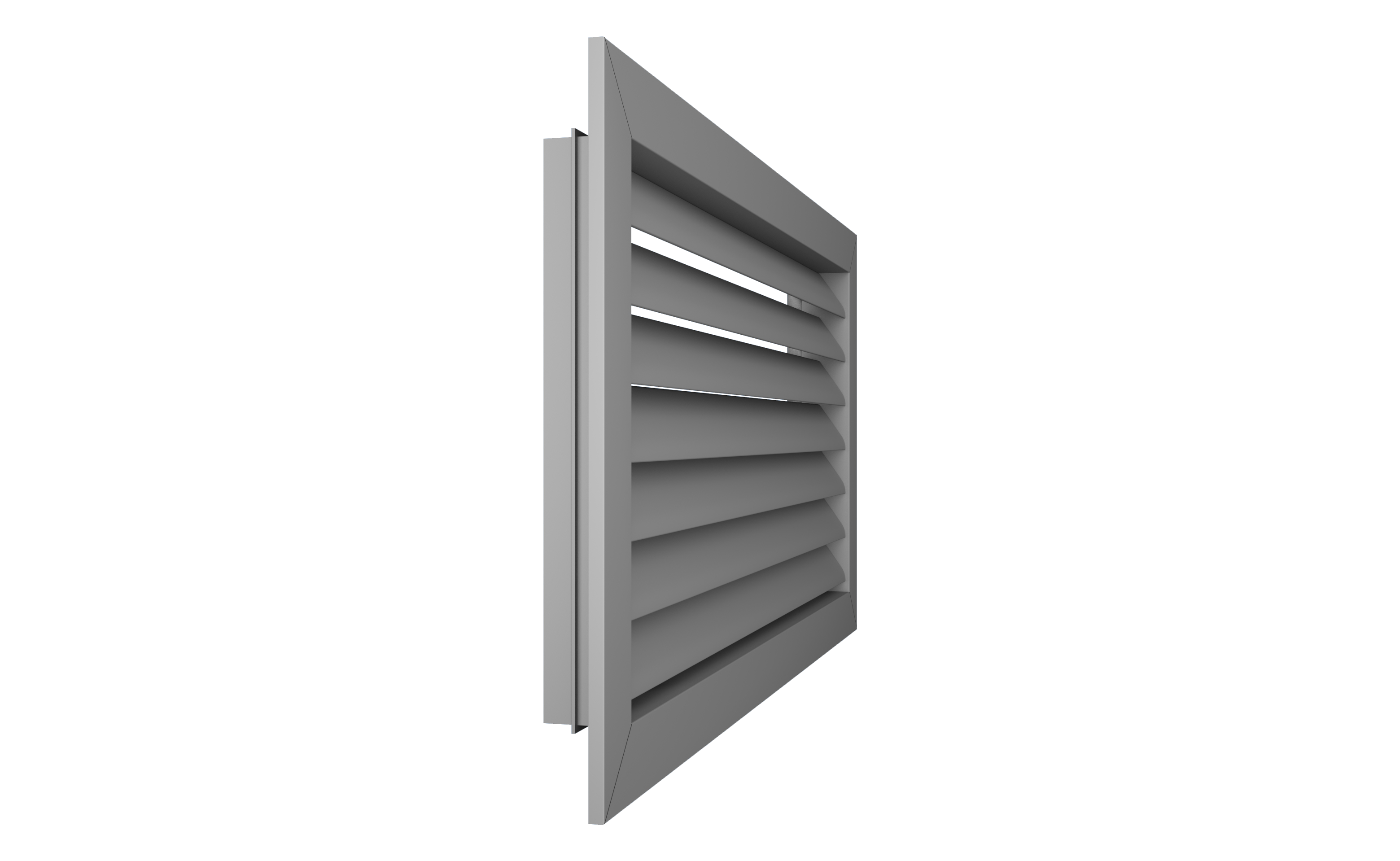

E-RA: Return grille with fixed 45º curved blades, made from anodized aluminium.

E-RAM: Return grille with fixed 45º curved horizontal blades with metallic anti-bird mesh, made from anodized aluminium profiles.

E-RA+MMF: Return grille with fixed blades with 45º horizontal curved profile, with mounting frame and metallic filter holder, made with extruded anodized aluminium profiles.

E-RAR: Return grille with fixed 45º curved blades, made from anodized aluminium, with flow regulation using opposing aluminium blades.

E-RAFIL: Return grille with fixed blades with a 45º horizontal curved profile, made from aluminum with E-FIL filter, consisting of a mesh and a filter attached to the grille by means of springs.

Attachment options:

Springs with frame E-MM, E-MAM or E-CLIPO

Screws with frame E-MM.

Finish: Anodized or white aluminium. Inquire for other finishes.

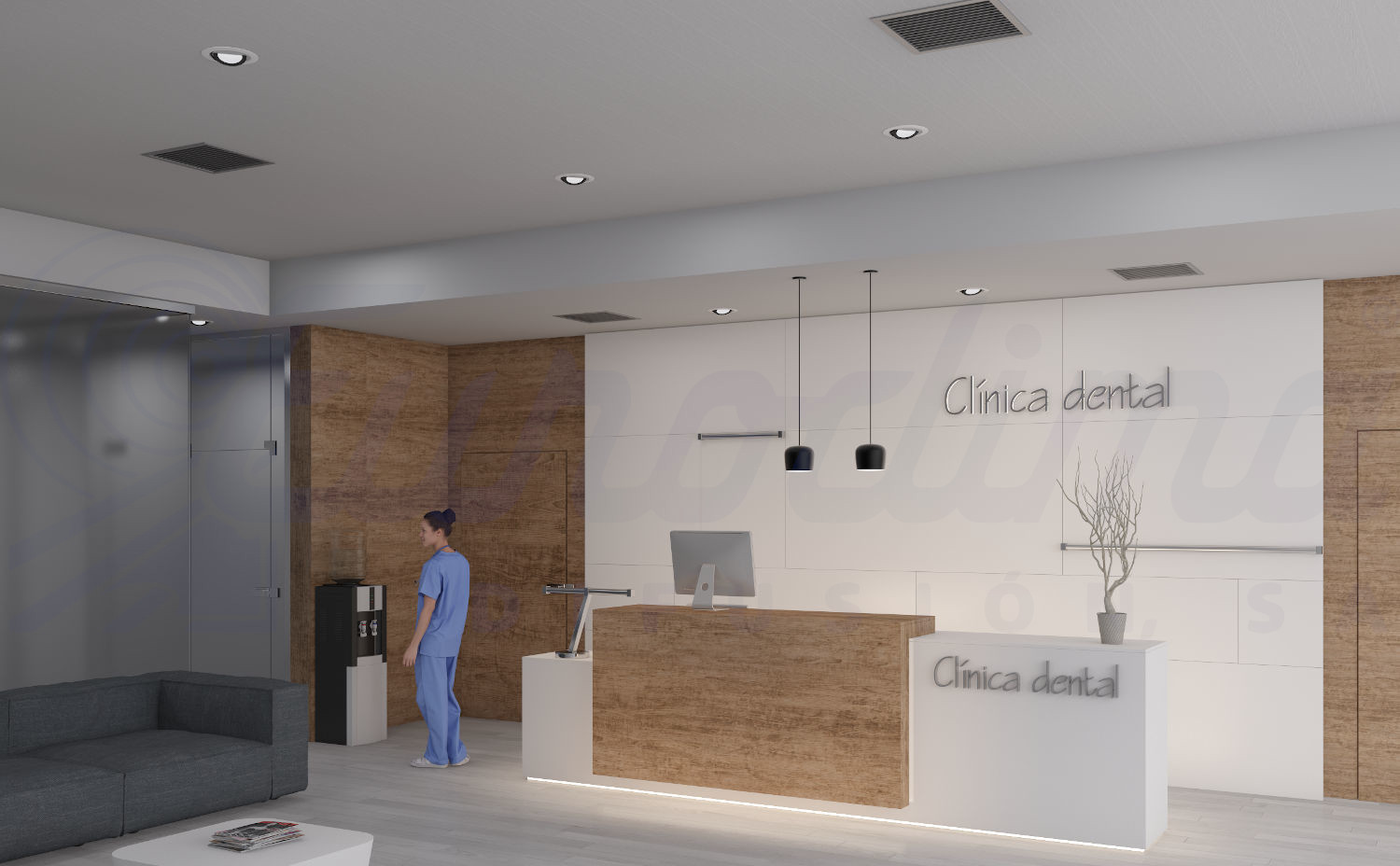

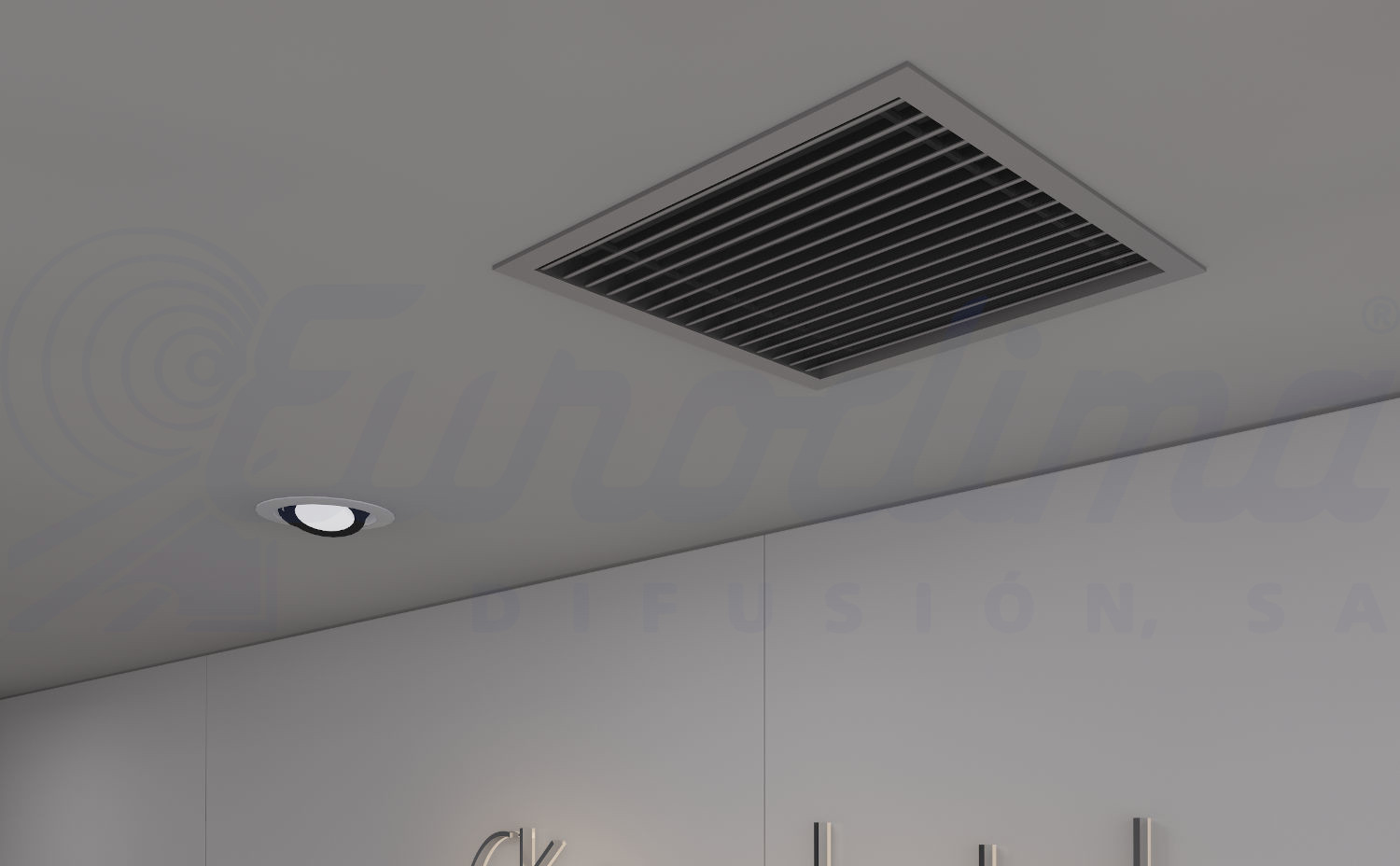

Applications: Return grilles for ceiling or wall mounting. The curved blades block the view of the duct opening. The E-RAM is a grille that must be used in the exterior to intake air for ventilation.
