E-FH

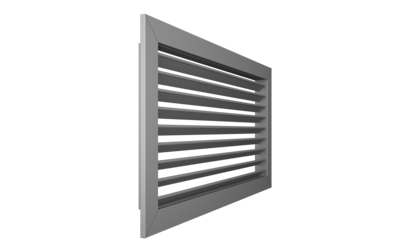

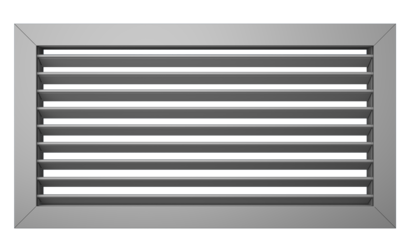

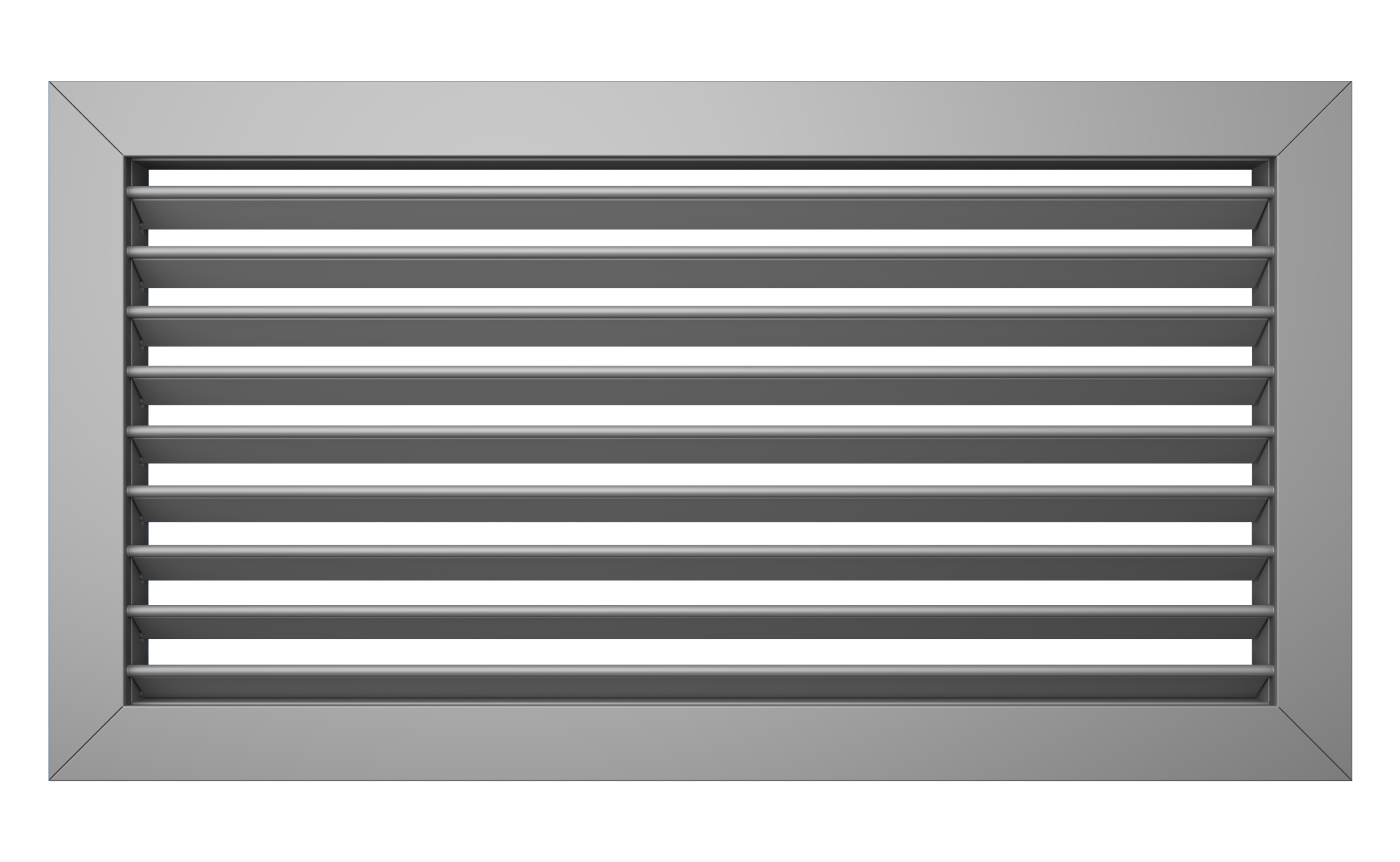

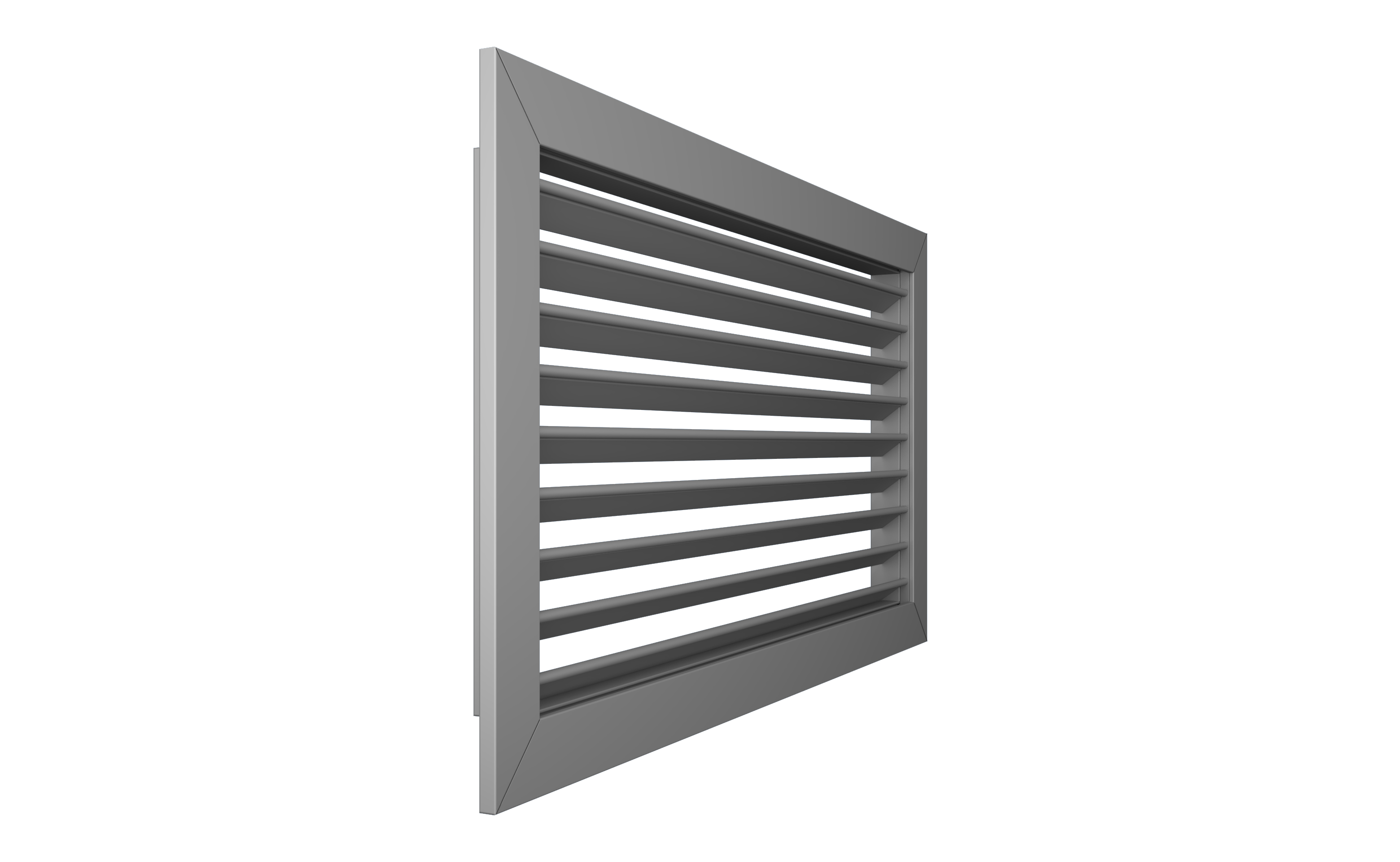

Return grille with fixed 45º straight horizontal blades

Downloads

Technical Specifications

E-FH: Return grille with fixed 45º straight horizontal blades, made from extruded anodized aluminium.

E-FHR: Return grille with fixed 45º straight horizontal blades, made from extruded anodized aluminium, with flow regulation using opposing aluminium blades.

E-FH+MMF: Return grille with fixed 45º straight horizontal blades with mounting frame and filter holder, made from extruded anodized aluminium.

Attachment options:

Springs with frame E-MM, E-MAM or E-CLIPO

Bolts with frame E-MM, E-MAM, or E-TACO

Screws with frame E-MM.

Finish: Anodized or white. Inquire for other finishes.

Applications: Return grilles in ceiling or wall installations

Outlet (2)

Promotional code: OUTLET00010

Price: 23.78

Quantity: 116

Description:

02.036.01000.0150.WTF00: Grille E-FH+MMF L = 1000 mm x H = 150 mm black colour RAL 9005, WITH FILTER. Fixed by knurled nut.

It is mandatory to indicate the promotional code in order to get these prize conditions

Promotional code: OUTLET00038

Price: 7.74

Quantity: 6

Description:

02.036.00450.0100.AP000: Grille E-FH L = 450 mm x H = 100 mm aluminium anodised. Fixed by latches.

It is mandatory to indicate the promotional code in order to get these prize conditions
