E-VHCA

Adaptable grille for circular duct

Downloads

Technical Specifications

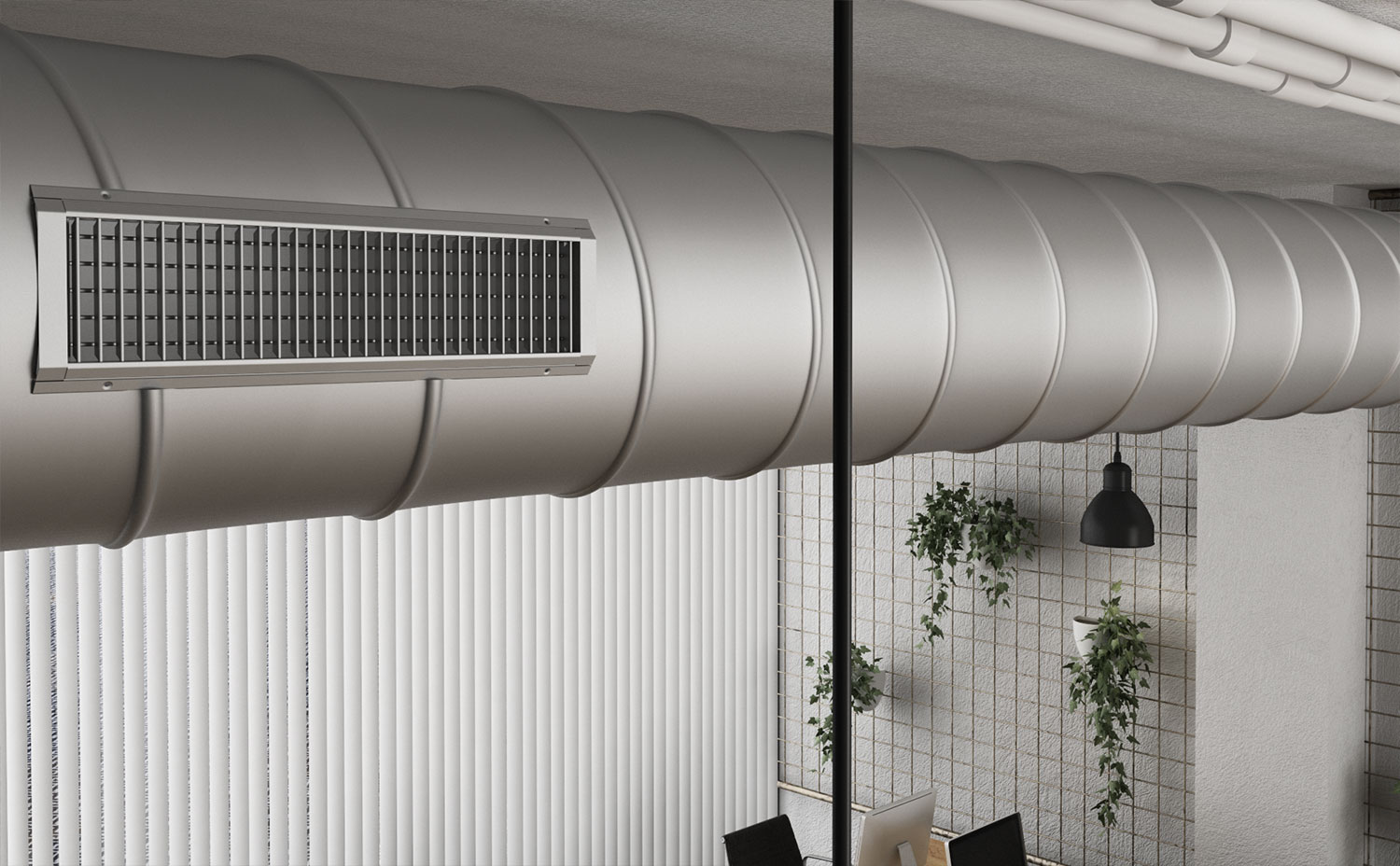

E-VHCA: Grille with one row of movable vertical blades and one row of movable horizontal blades. Made with special extruded aluminum profiles that allow the grille to adapt to a circular duct of any diameter.

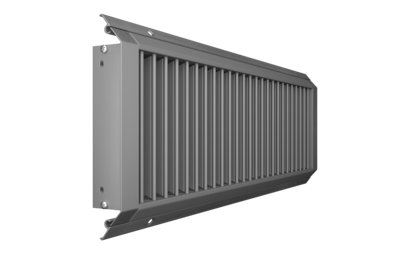

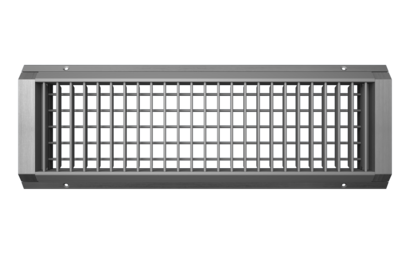

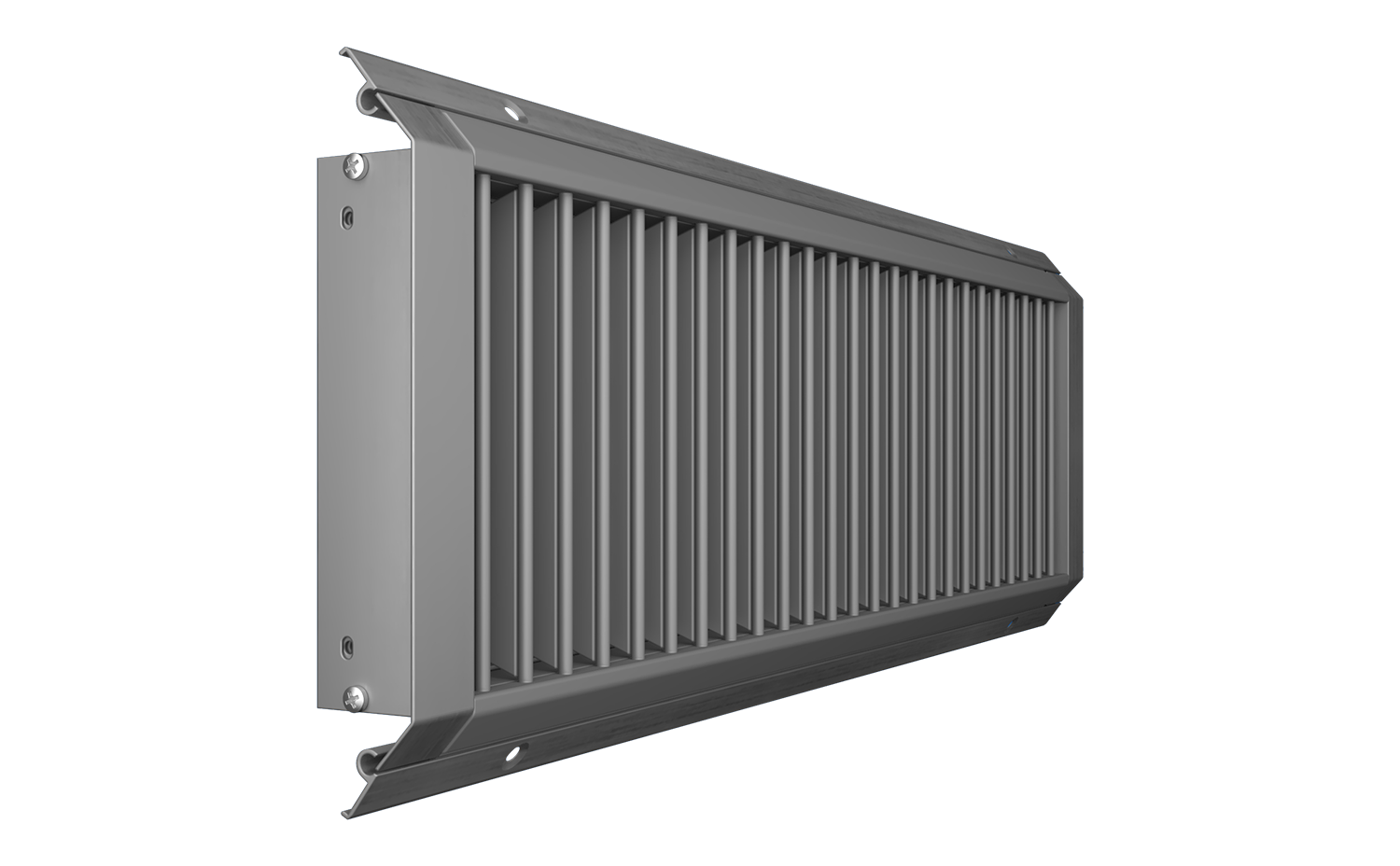

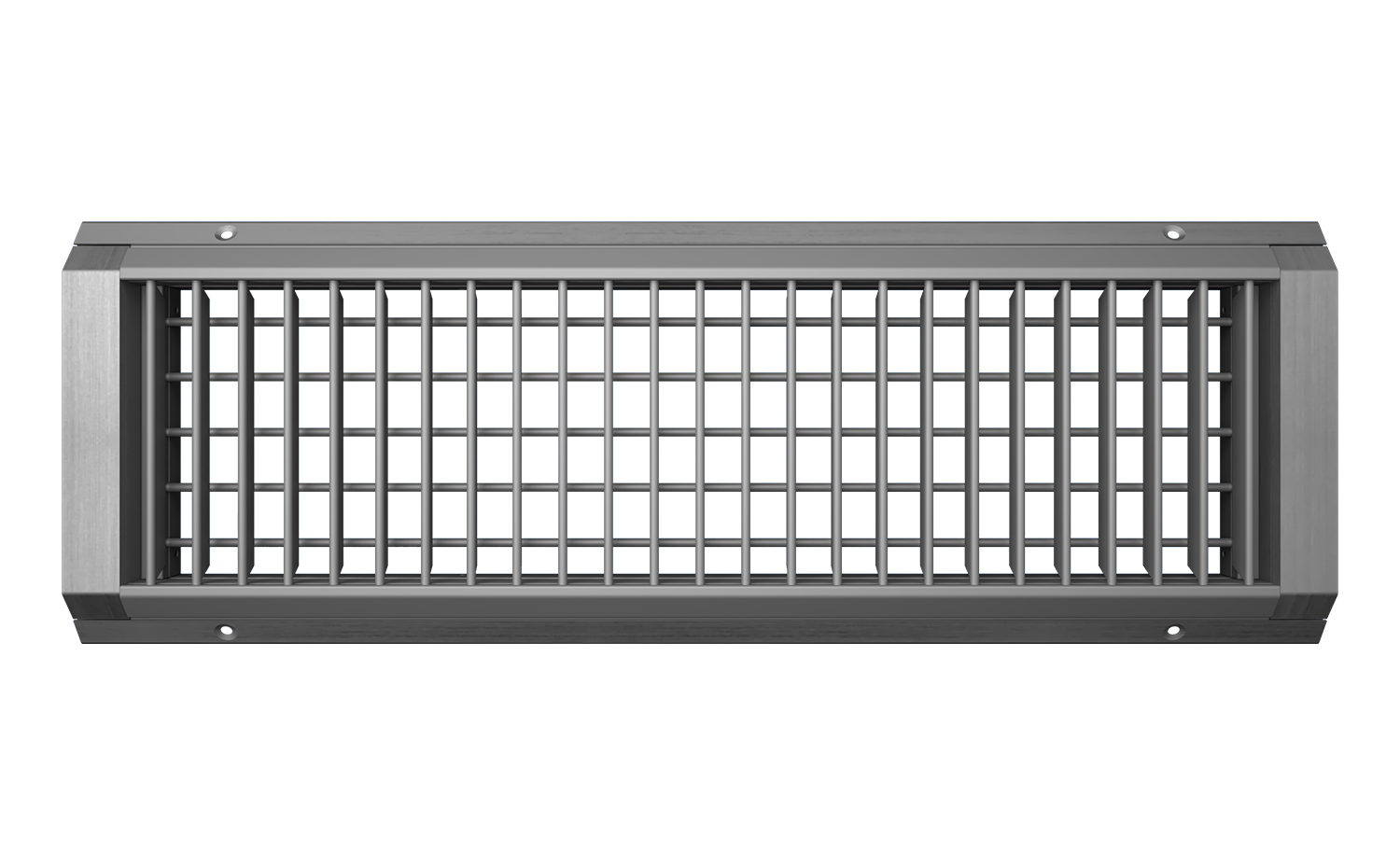

E-VHCAR: Grille with one row of movable vertical blades and one row of movable horizontal blades. Made with special extruded aluminum profiles that allow the grille to adapt to a circular duct of any diameter, with flow regulation of opposed blades.

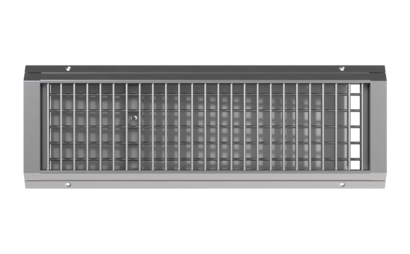

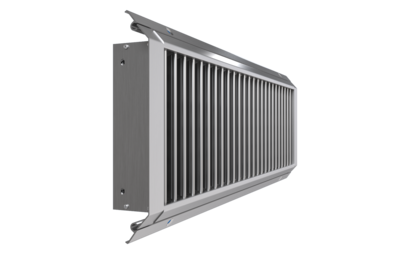

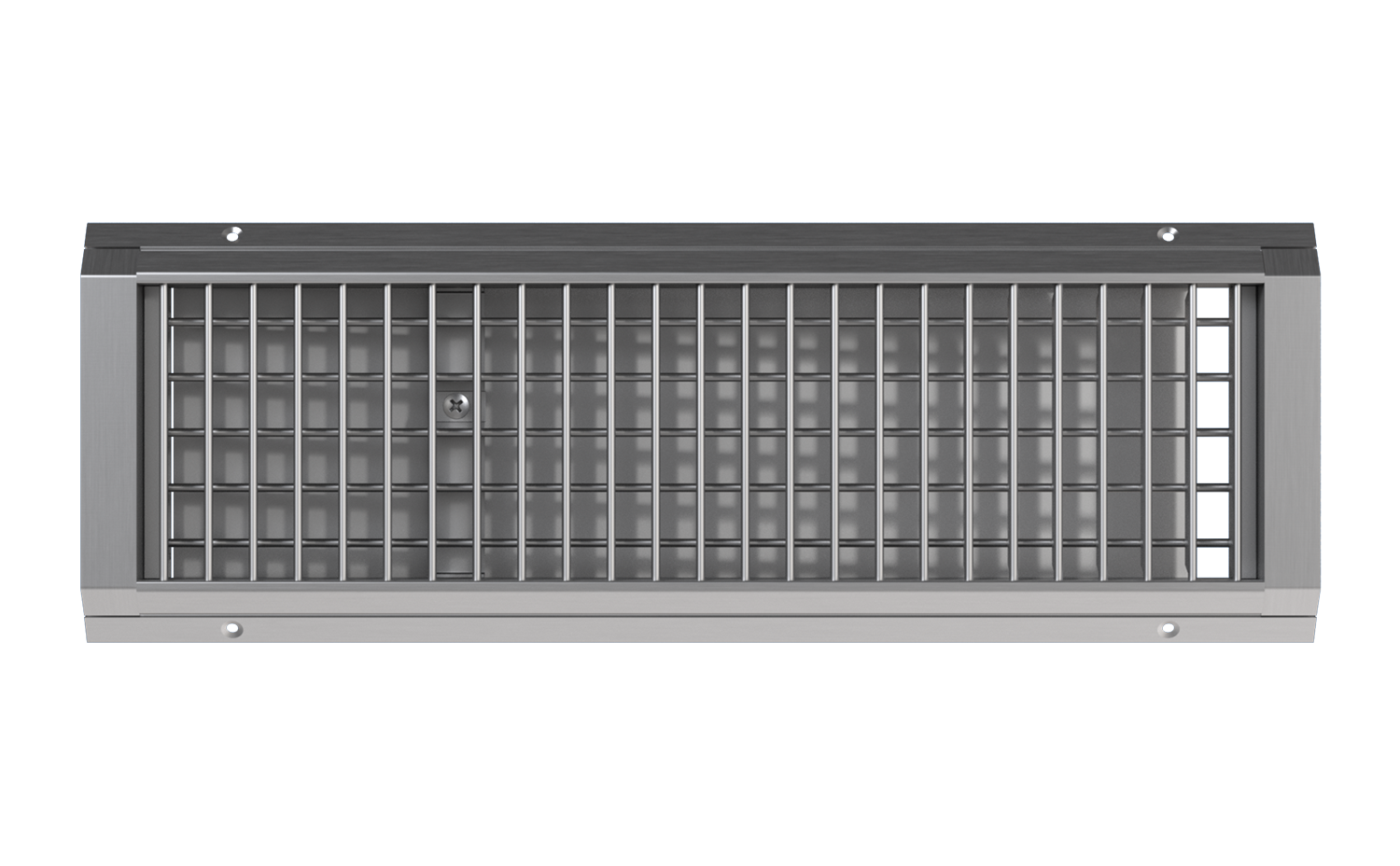

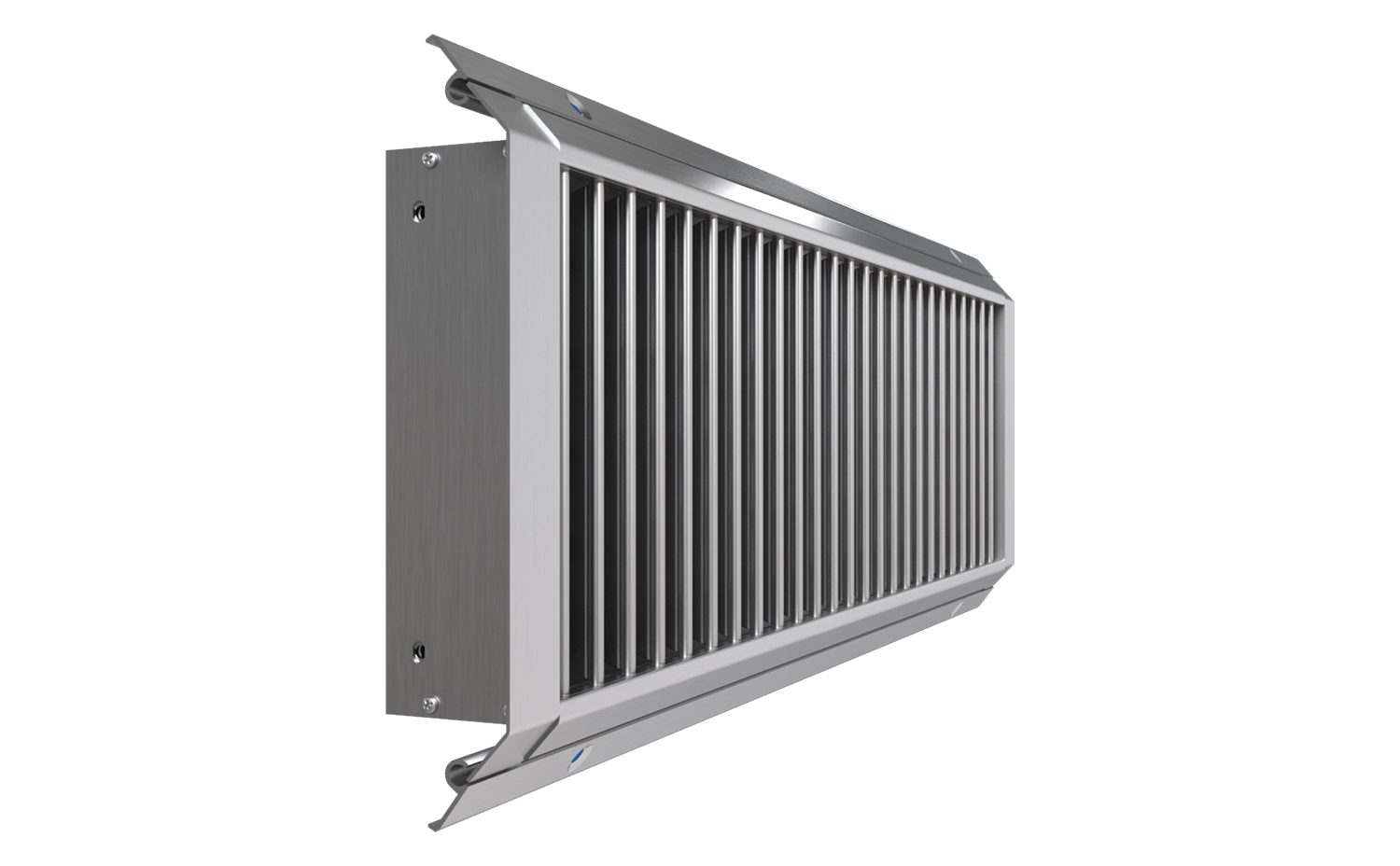

E-VHCAC: Grille with one row of movable vertical blades and one row of movable horizontal blades. Made with special extruded aluminum profiles that allow the grille to adapt to a circular duct of any diameter, with flow capture.

Attachment by screws.

Finish: Raw aluminum without anodizing. Consult for other finishes.

Outlet (3)

Promotional code: OUTLET00030

Price: 33.84

Quantity: 8

Description:

02.226.00425.0150.WTR00: GRILLE E-VHCAR L=425 mm X H=150 mm RAL 9010 fixation by screws.

It is mandatory to indicate the promotional code in order to get these prize conditions

Promotional code: OUTLET00033

Price: 41.01

Quantity: 4

Description:

02.226.00625.0100.WTR00: GRILLE E-VHCAR L=625 mm X H=100 mm RAL 9010 fixation by screws.

It is mandatory to indicate the promotional code in order to get these prize conditons

Promotional code: OUTLET00037

Price: 43.21

Quantity: 1

Description:

02.226.00625.0150.WTR00: GRILLE E-VHCAR L=625 mm X H=150 mm RAL 9010 fixation by screws.

It is mandatory to indicate the promotional code in order to get these prize conditions.
