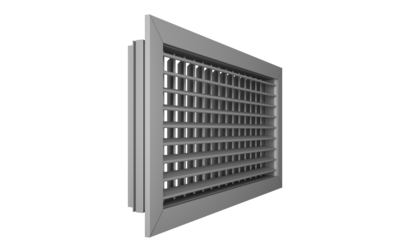

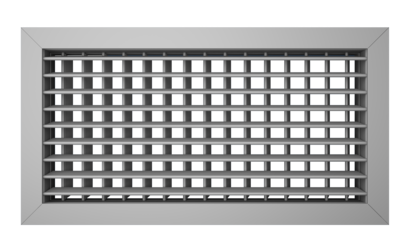

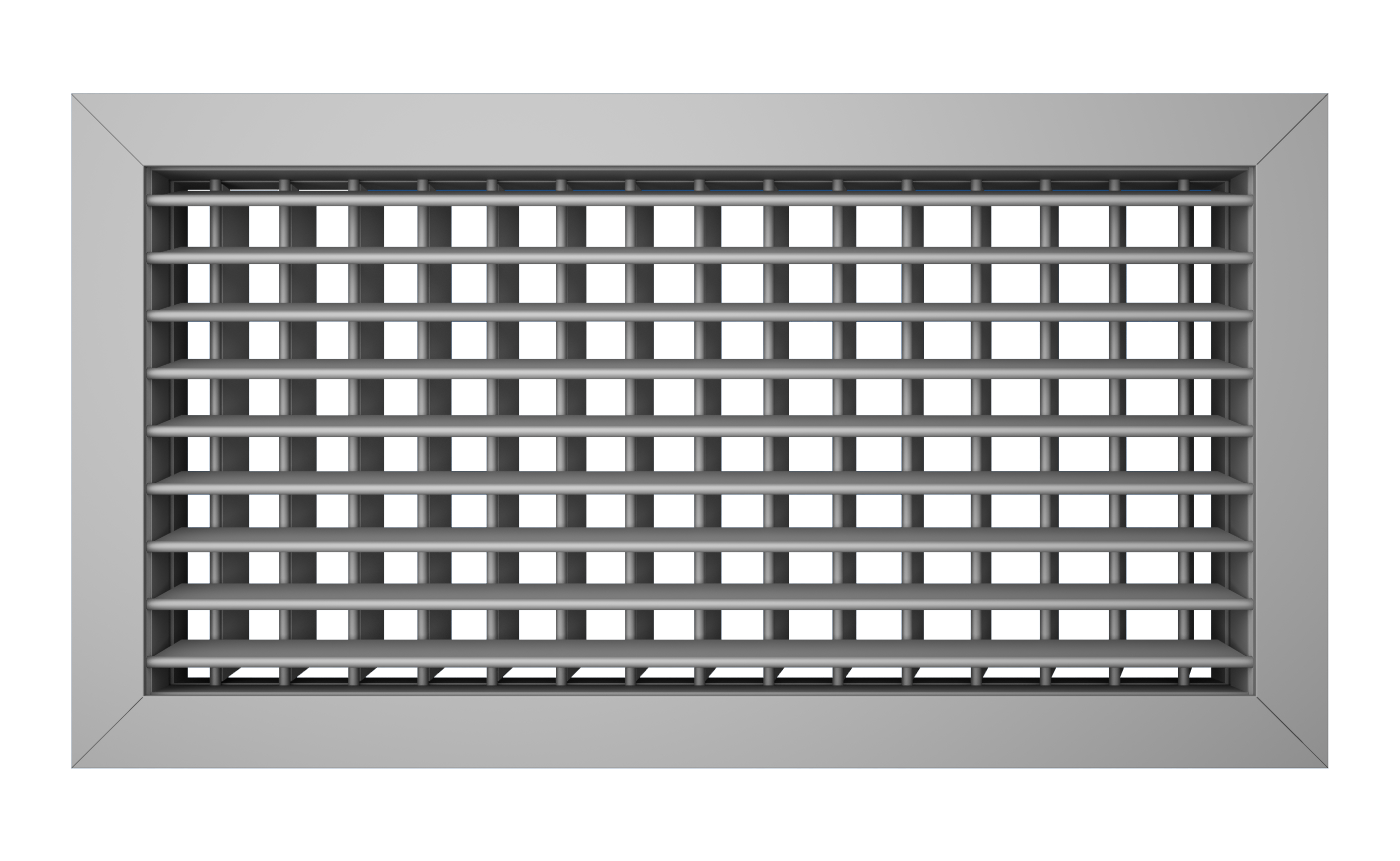

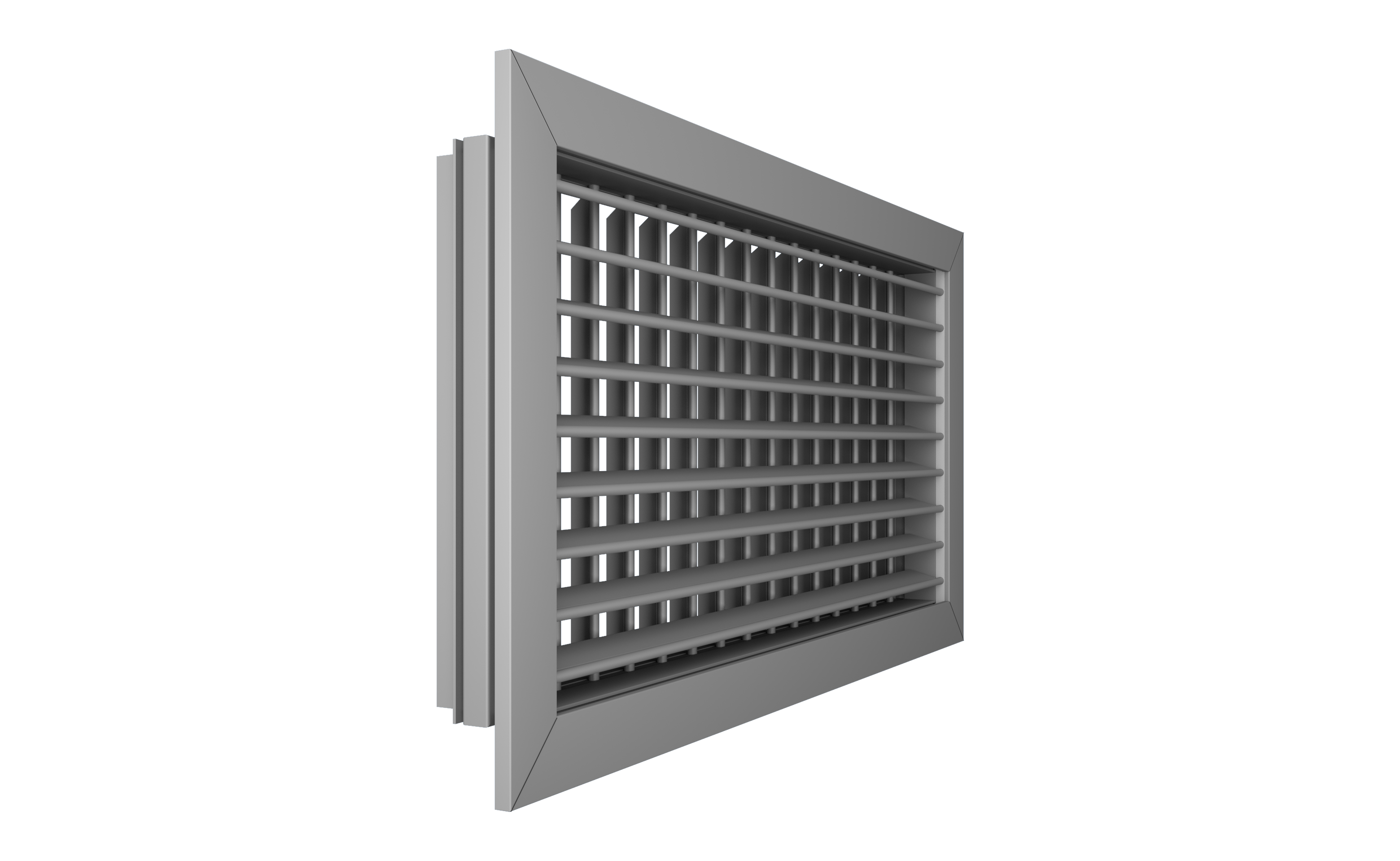

E-HV Grille with horizontal and vertical moving blades with a first row of horizontal blades and another of vertical moving blades made with extruded anodized aluminium profiles.
E-HVR Grille with horizontal and vertical moving blades with regulation with a first row of horizontal blades and another of vertical moving blades made with extruded anodized aluminium profiles, with flow regulation with opposing aluminium blades.
E-HV HOT Grille E-HV that supports up to 150ºC without plastic deformation.
Option to install in its motorized version: E-HVRM
Attachment options:
Springs with E-MM, E-MAM, or E-CLIPO frame
Latches with E-MM, E-MAM, or E-TACO frame
Screws with E-MM frame.
Finish: Anodized aluminum or white lacquer. Inquire for other finishes.
Applications: This is the most commonly used grille for air supply from walls. Its double deflection allows for a wide variety of airflow patterns.
Promotional code: OUTLET00006
Price: 22.77
Quantity: 10
Description:
02.024.00100.0500.AMR00: E-HVR L = 100 mm x H = 500 mm horizontal and vertical blades with air flow regulation. Anodised aluminium et fixation par clips.
It is mandatory to indicate the promotional code in order to get these prize conditions
Promotional code: OUTLET00009
Price: 21.5
Quantity: 92
Description:
02.024.01000.0150.WM000: Grille E-HV L = 1000 mm x H = 150 mm black painted RAL 9005. Fixation by clips
It is mandatory to indicate the promotional code in order to get these prize conditions
Promotional code: OUTLET00036
Price: 15.8
Quantity: 10
Description:
02.024.00100.0300.APR00: Grille E-HVR L = 100 mm x H = 300 mm aluminium anodised. Fixation by latches
It is mandatory to indicate the promotional code in order to get these prize conditions
Promotional code: OUTLET00040
Price: 20.62
Quantity: 8
Description:
02.024.00600.0200.AT000: E-HV L = 600 mm x H = 200 mm horizontal and vertical blades. Anodised aluminium et fixation par screws.
It is mandatory to indicate the promotional code in order to get these prize conditions
Promotional code: OUTLET00046
Price: 9.35
Quantity: 1
Description:
02.024.00250.0150.AT000: Grille E-HV L = 250 mm x H = 150 mm aluminium anodised. Fixation by screws
It is mandatory to indicate the promotional code in order to get these prize conditions
Promotional code: OUTLET00049
Price: 12.67
Quantity: 2
Description:
02.024.00150.0400.AP000: Grille E-HV L = 150 mm x H = 400 mm aluminium anodised. Fixation by latches
It is mandatory to indicate the promotional code in order to get these prize conditions
Promotional code: OUTLET00050
Price: 8.84
Quantity: 1
Description:
02.024.00300.0100.LT000: Grille E-HV L = 300 mm x H = 100 mm white coloured. Fixation by screws.
It is mandatory to indicate the promotional code in order to get these prize conditions
