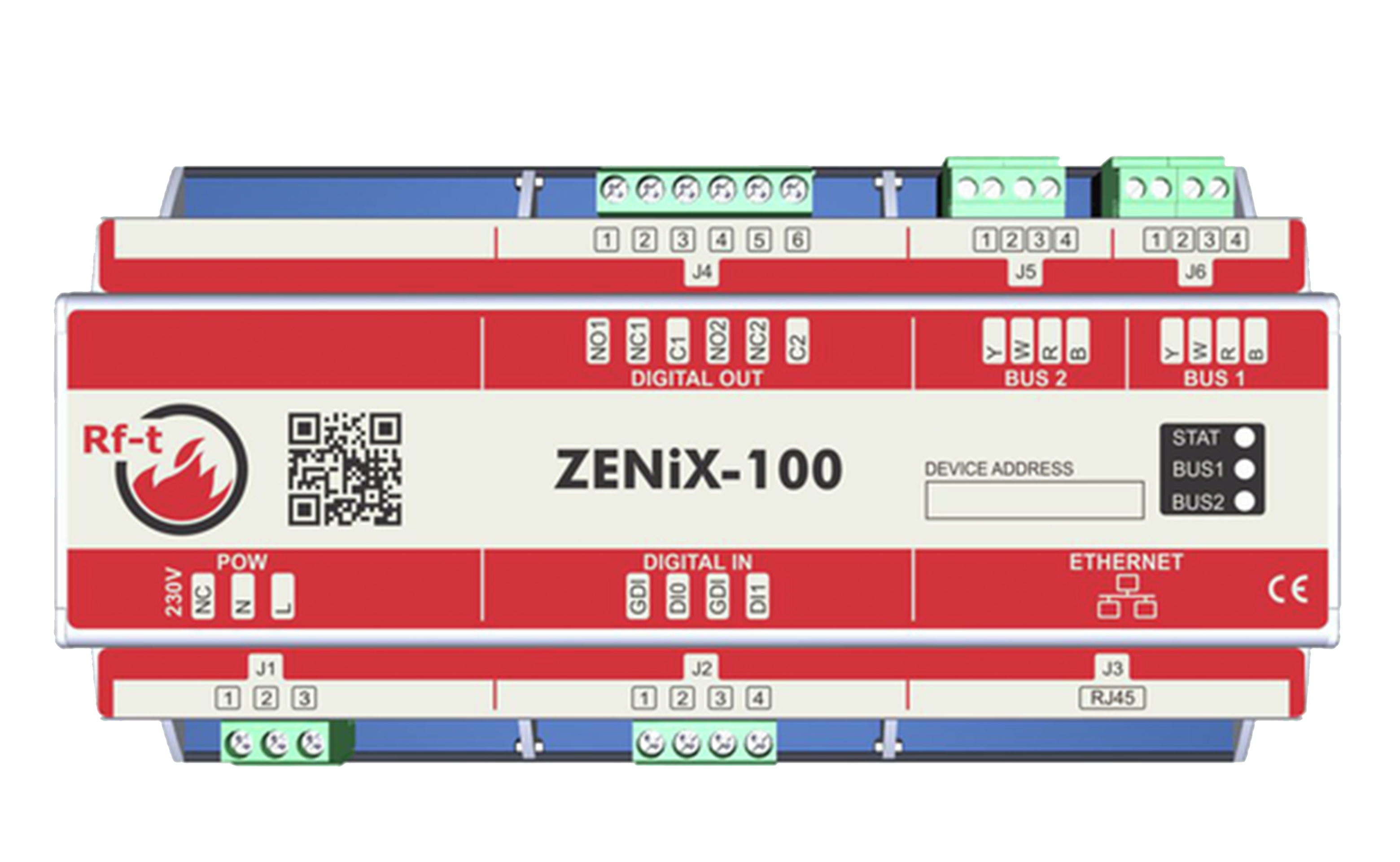

ZENiX-100 is a complete system for monitoring and controlling fire dampers and smoke extraction dampers. It continuously monitors the status of all network components and makes necessary state changes. In case of a fire alarm, it executes defined actions and indicates changes in various ways.

Features:

- Each ZENiX-100 controller can manage up to 100 devices.
- Suitable for medium and large installations.
- Flexibility: it can be used for basic fire scenarios using a factory-preprogrammed solution, as well as for elaborate fire scenarios (scenario matrix).
- Allows monitoring of self-commanding dampers (MFUS, MFUSP, CFTH), remotely operated dampers (UNIQ), and motorized dampers (ONET, BLF, BFN...).
- Controls motorized fire dampers and smoke extraction dampers.
- Provides outputs to building management systems (BMS) and other HVAC components via relay outputs.

Operation: ZENiX-100 communicates with all devices connected to the same bus network and contains the programming and operation software to manage inputs and outputs. The ZENiX-100 system can serve as a gateway to a building management system (via BACnet IP), although it can also operate independently as an autonomous solution.

ONE-X is a servomotor for fire dampers with an integrated field module. It is supplied installed in the fire damper and requires no additional configuration.

Components

- ZENiX 1FD: For the monitoring and control of a 230V fire damper.
- ZENiX 2FD: For the monitoring and control of two 230V fire dampers.
- ZENiX 1FDST: For the monitoring and control of a 24V fire damper with ST connector.
- ZENiX 2FDST: For the monitoring and control of two 24V fire dampers with ST connector.
- ZENiX 1SD: For the monitoring and control of a 230V smoke control damper.
- ZENiX 1SDST: For the monitoring and control of a 24V smoke control damper with ST connector.
- ZENiX 1SSH: For the monitoring and control of a 24V smoke control damper.
- ZENiX 2MFD: For the monitoring of up to 2 mechanical dampers.
- ZENiX DI12: Device with 12 potential-free digital inputs.
- ZENiX DI8DO4: Device with 8 potential-free digital inputs and 4 relay digital outputs .
