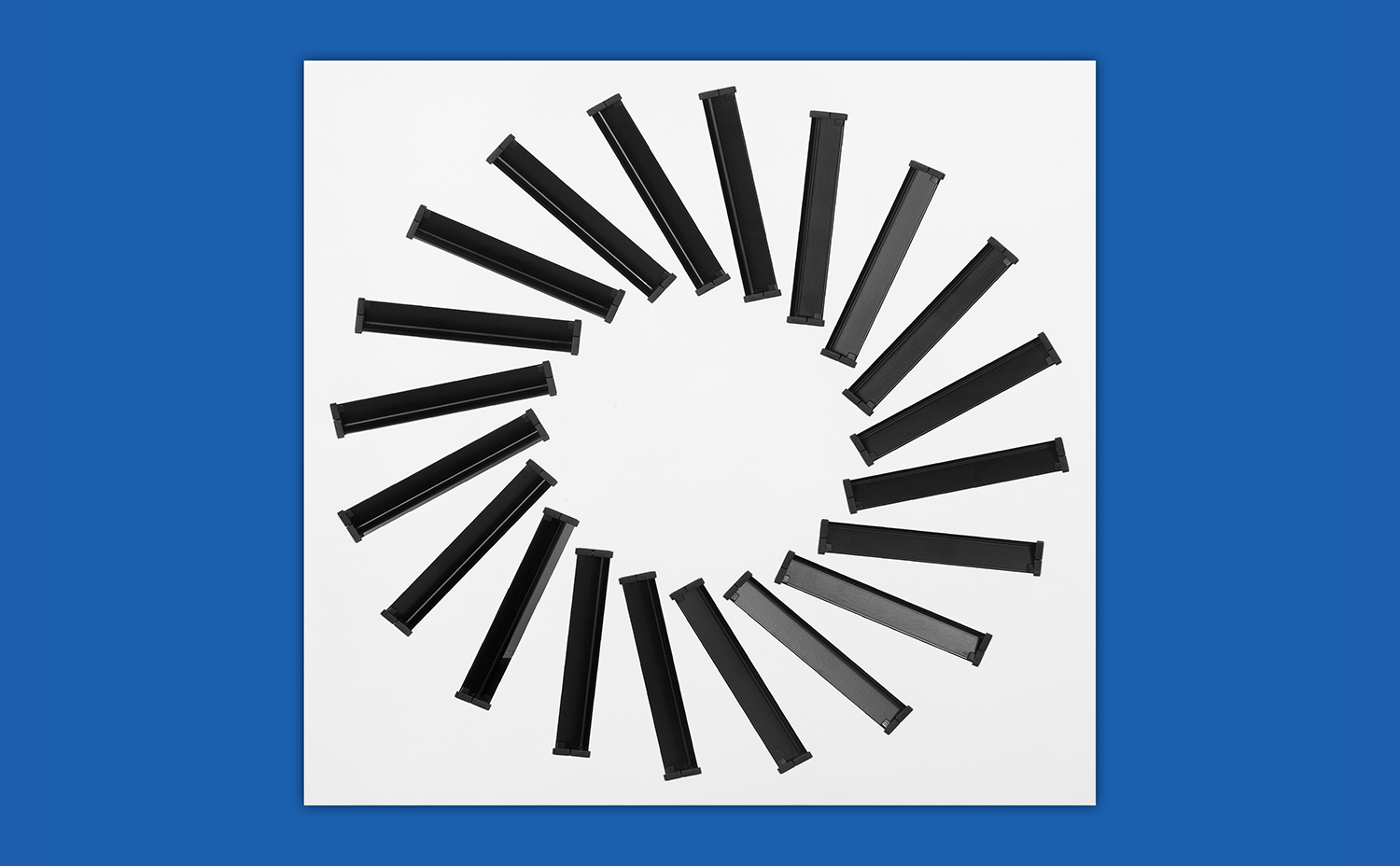

E-DRO20 Rotational diffuser with external measurements of 593 x 593 mm made from a flat sheet with white lacquer with 20 slots.

Characterised by the system used to to attach the blades and their orientation. These blades must be fixed exactly with openings of 22º, 47º and 62º.

Using the same system of attachment and direction of the blades, other sizes and designs can be made depending on the quantity required.

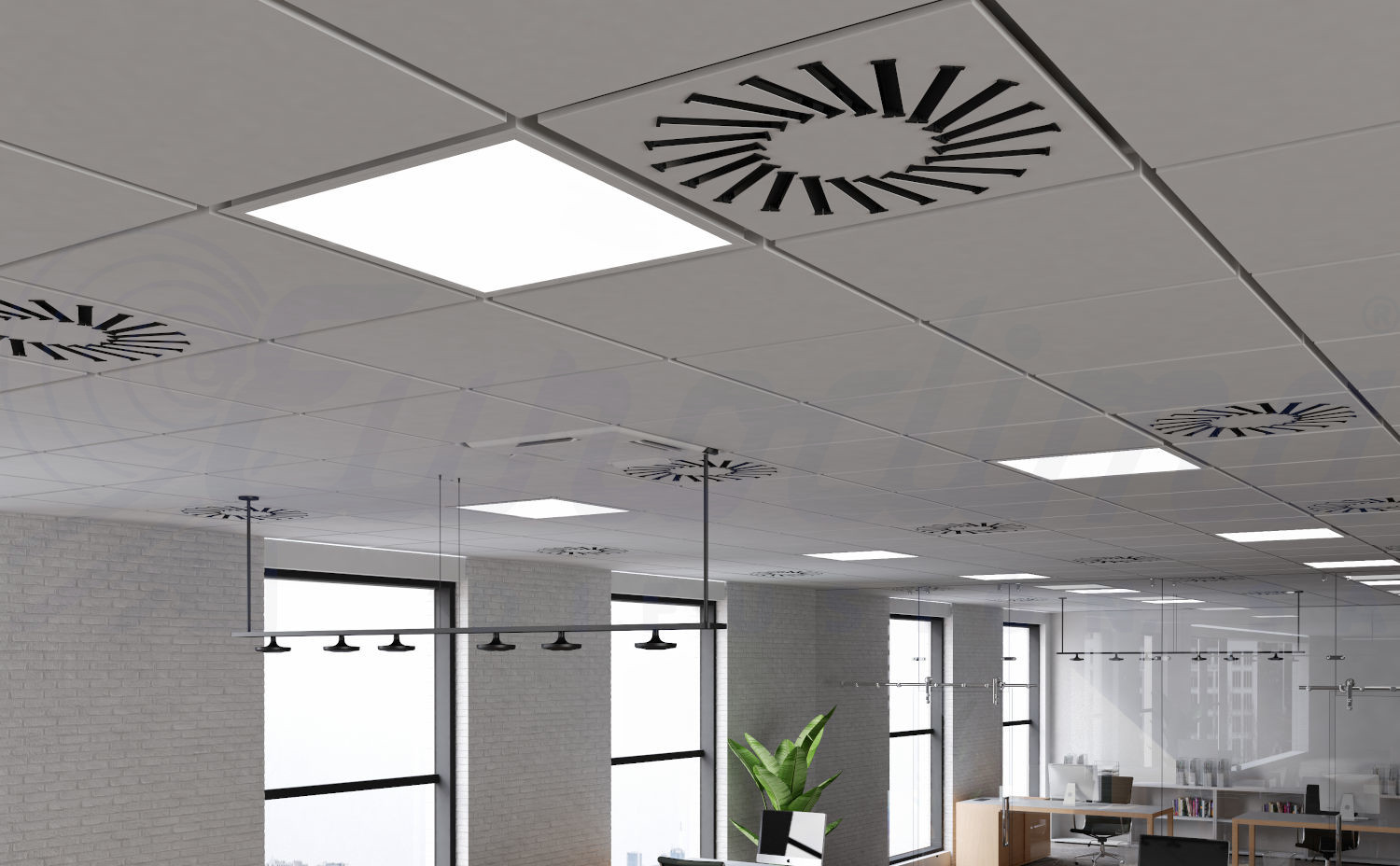

Fixtures: Supported on the ceiling edging, or well fixed to the plenum via a central screw.

Finish: White lacquered. (Ask about other finishes).

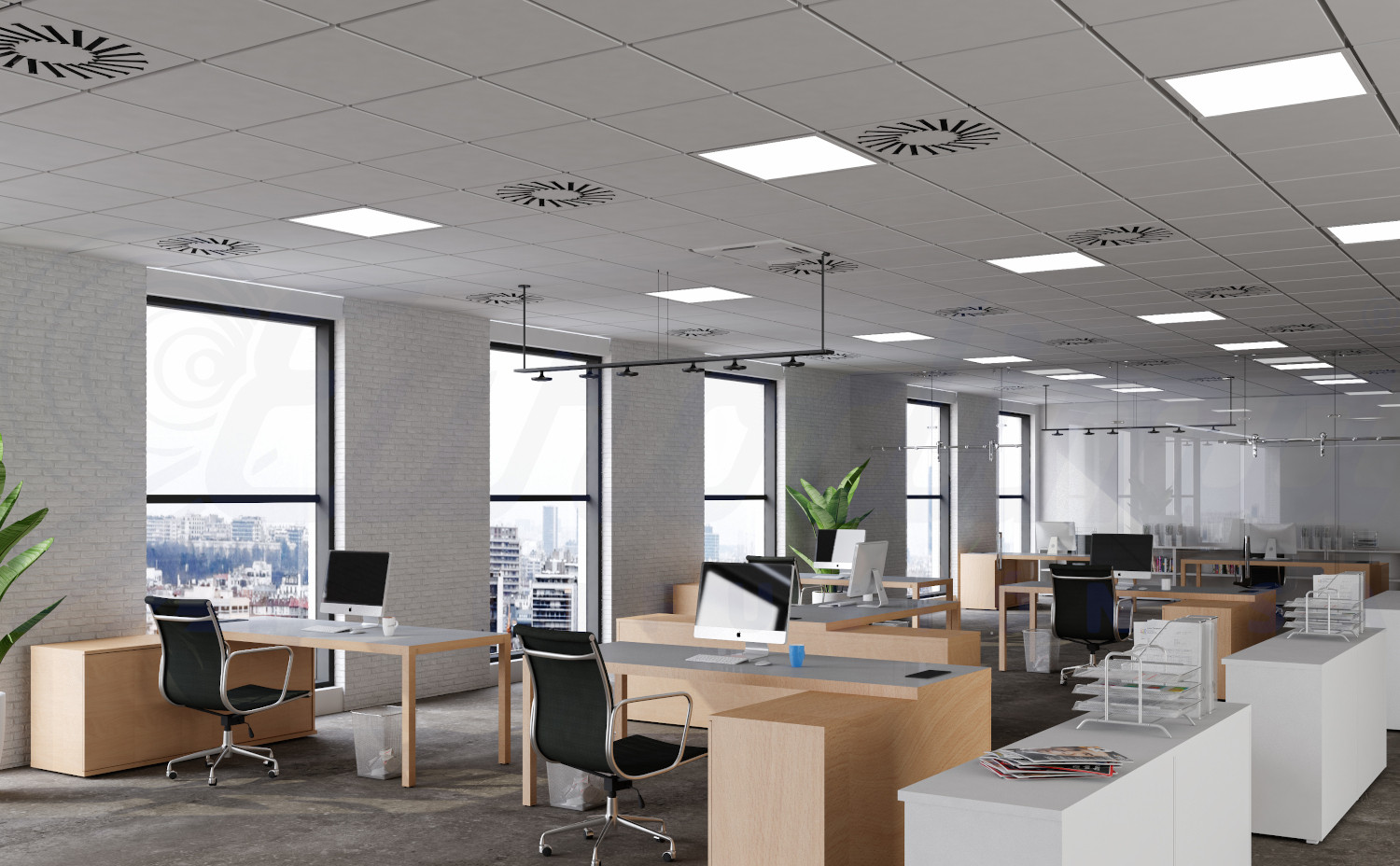

Applications: Rotational diffusers are used to expel air, usually in places in the terciary sector (offices, banks, …) with the blades in the minimum opening position (22º) the diffuser has shorter vertical throw.
